JBL Professional AM5215/95 350 W RMS Speaker - 2-way - Black

Print JBL Professional AM5215/95 350 W RMS Speaker - 2-way - Black pageRequest Bulk Pricing CAMCOR ITEM NO. 319900022 | MFG. PART NO. AM5215/95
JBL Professional AM5215/95 350 W RMS Speaker - 2-way - Black
JBL Professional AM5215/95 350 W RMS Speaker - 2-way - Black
Zoom
Close WindowZoom
Alternate View

We will gladly send you a quote for this item. Please click the link below to fill out the form and receive the quote via FAX or e-mail.

Get Quote

Become a registered user and view prices on all products

Product Highlights
The AM5215/95 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

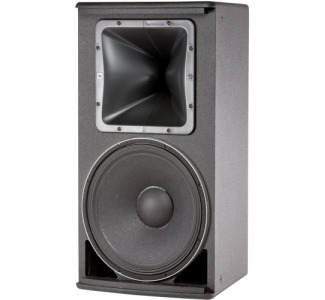

The AM5215/95 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.



Specifications

General Information
ManufacturerHarman International Industries, Inc
Brand NameJBL Professional
Product ModelAM5215/95
Product TypeSpeaker
Technical Information
Crossover Type2-way
RMS Output Power350 W
PMPO Output Power1400 W
Driver Type
  • 1.50" Tweeter
  • 15" Woofer
  • Minimum Frequency Response41 Hz
    Maximum Frequency Response18 kHz
    Impedance8 Ohm
    Crossover Frequency1.80 kHz
    Sound Pressure Level129 dB
    Sensitivity113 dB
    Physical Characteristics
    ColorBlack
    Material
  • Birch Plywood
  • Perforated-steel
  • Foam
  • Height30.8"
    Width16.6"
    Depth19.9"
    Weight (Approximate)55.00 lb
    Miscellaneous
    Certifications & Standards
    • Mil-Std 810
    • IP-x3 per IEC529
    Warranty
    Limited Warranty5 Year
