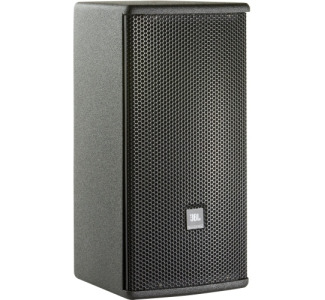

JBL Professional AC18/95 500 W RMS Speaker - 2-way - Black

Print JBL Professional AC18/95 500 W RMS Speaker - 2-way - Black pageRequest Bulk Pricing CAMCOR ITEM NO. 319900020 | MFG. PART NO. AC18/95
JBL Professional AC18/95 500 W RMS Speaker - 2-way - Black
JBL Professional AC18/95 500 W RMS Speaker - 2-way - Black
Zoom
Close WindowZoom
Alternate View

We will gladly send you a quote for this item. Please click the link below to fill out the form and receive the quote via FAX or e-mail.

Get Quote

Become a registered user and view prices on all products

Product Highlights
The AC18/95 is a compact full-range loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

The AC18/95 is a compact full-range loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column, or wall mounting. The high frequency device is a 1" exit compression driver integrated into a newly designed 90° x 50° rotatable PT™ (Progressive Transition) waveguide providing even coverage throughout the intended listening area. The combination exhibits smooth power response resulting in extremely natural voicing. The AC18/95 utilizes an 8" Symmetrical Field Geometry (SFG™) LF Transducer with a copper-clad aluminum edge wound 2.5" voice coil and a copper-clad pole piece that improves performance by reducing voice coil inductance and distortion.



Specifications

General Information
ManufacturerHarman International Industries, Inc
Brand NameJBL Professional
Product ModelAC18/95
Product TypeSpeaker
Technical Information
Crossover Type2-way
RMS Output Power500 W
PMPO Output Power1 kW
Driver Type
  • 8" Woofer
  • 1" Tweeter
  • Minimum Frequency Response63 Hz
    Maximum Frequency Response19 kHz
    Impedance8 Ohm
    Crossover Frequency2.10 kHz
    Sound Pressure Level117 dB
    Sensitivity93 dB
    Physical Characteristics
    ColorBlack
    Material
  • Plywood
  • Cloth
  • Steel
  • Foam
  • Form Factor
  • Stand Mountable
  • Wall Mountable
  • Ceiling-mountable
  • Height18.5"
    Width9.4"
    Depth10.0"
    Weight (Approximate)28.22 lb
    Miscellaneous
    Certifications & Standards
    • Mil-Std 810
    • IPx3 per IEC529
    Warranty
    Limited Warranty5 Year
