CAMCOR ITEM NO. 143000051 | MFG. PART NO. 999-5700-000
Product Highlights
The Precision Camera Controller boasts a broadcast-quality joystick designed for smooth and accurate pan, tilt and zoom control, as well as CCU image control functionality for controlling up to ... More
Is This Item Right For Me? - Ask Our Experts
California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

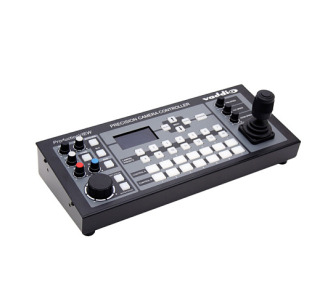

The Precision Camera Controller boasts a broadcast-quality joystick designed for smooth and accurate pan, tilt and zoom control, as well as CCU image control functionality for controlling up to seven PTZ cameras. By integrating CCU control into the system users can control red and blue gain, detail, and iris with adjustable gain with any Vaddio™ PTZ camera. One-push white balance (OPWB), auto white balance (AWB) and auto iris are also available to those who desire a more automated image control system. The CCU control surface gives system users real-time knobs and buttons to control each of these functions.
Designed to control up to seven PTZ cameras, the Precision Camera Controller can be used as a stand-alone device or in conjunction with a variety of video switchers or mixers on the market today. In addition, two Precision Camera Controllers can be linked together to allow the user to control all cameras from either controller.
Seven (7) RS-232 Camera Control Ports on RJ-45 Connectors Two (2) Link Ports (In and Out) on RJ-45 One (1) RS-232 Control Port on DB-9F Seven (7) Tally Outputs - Group A Seven (7) Tally Outputs - Group B One (1) Power Connector (Coaxial, Positive Center, 5.5mm OD x 2.5mm ID)
Compatible Cameras
Vaddio WallVIEW, HideAway, Model and Add-Cam Series Cameras Panasonic AW-HE100 PTZ Camera Sony EVI and BRC Series PTZ Cameras Canon VC-C50i and VC-C50iR
Joystick
3-Axis, Hall-Effect, Non-contacting type with single button
Presets
98 (14 per PTZ camera attached)
Camera Control
Iris, Gain, Detail, Red Gain, Blue Gain, Focus (for compatible cameras) Pan, Tilt and Zoom on Joystick Pan, Tilt and Zoom speed (for Joystick PTZ functions) Auto Iris, Backlight Compensation, One-Push White Balance, Auto White Balance, Fast Focus and Auto Focus on buttons.
