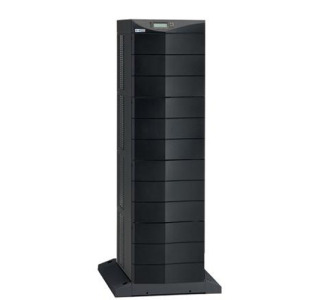

Eaton 9170+ Rackmount UPS 15 to 18 kVA UPS
CAMCOR ITEM NO. 224000120 | MFG. PART NO. PW12S15K-PD
Product Highlights
With a scaleable, modular and redundant design, the Powerware 9170+ Rackmount UPS provides advanced backup power and power quality management and offers the highest level of power protection and ... More
Is This Item Right For Me? - Ask Our Experts
California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.
Product Description
With a scaleable, modular and redundant design, the Powerware 9170+ Rackmount UPS provides advanced backup power and power quality management and offers the highest level of power protection and power quality of any Rackmount UPS power supply in the 3-18 kVA range.
Specifications
General Information
Manufacturer Eaton Corporation
Brand Name Eaton
Product Type Online UPS
Technical Information
Plug/Connector Type Hardwired
Receptacles 3 x NEMA L14-30R
3 x NEMA L6-30R
12 x NEMA 5-20R
Power Description
Load Capacity 15 kVA/10.50 kW
Input Voltage 110 V AC
220 V AC
Input Voltage Range 120 V AC
208 V AC
240 V AC
Output Voltage 120 V AC
208 V AC
240 V AC
Frequency 50 Hz
60 Hz
Waveform Type Sine Wave
Scalability
Power Range 15 kVA to 18 kVA /
Modules 5 x Power Module
10 x Battery Module
Management
Network Management Optional
Alarm Low Battery
High Battery
Low AC Output
High AC Output
High AC Input
Output Overload
Overload Shutdown
High Heatsink Temperature
Emergency Power Off
Module Failure
Excessive Transfer
Precharge Failure
Incompatible Module
Fan Failure
Low Runtime
Check Memory
Check Battery Open Cell
Check Battery Weak Battery
Low Redundancy Insufficient Battery
Low Redundancy Insufficient Module
Check Battery
Phase Error
Bypass Switch Automatic
Emergency Power OFF Yes
Battery Management Advanced Battery Management
Controls/Indicators
Control Panel
Status Indicators
Interfaces/Ports
Modular Slots 2 x Communications Slot
Battery Information
Batteries Maintenance-free Sealed Lead Acid Hot-swappable
Backup/Run Time 0.13 Hour 10.50 kW Full Load
0.40 Hour 5.25 kW Half Load
Battery Recharge Time <4 Hour Standard
Environmental Conditions
Temperature 32°F (0°C) to 104°F (40°C) Operating
-4°F (-20°C) to 104°F (40°C) Storage
Humidity 50 to 90% Non-condensing Relative Humidity
Altitude 10000 ft Operating
40000 ft Non-operating
Sound Emission 50 dB(A)
Cooling Type Internal Fans
Physical Characteristics
Form Factor Rack-mountable
Miscellaneous
Additional Information Eliminates single point-of-failure with N+X power and logic redundancy Grows with changing IT environments by incorporating scalable design of 3 kVA power modules and batteries
Certifications & Standards UL CUL FCC class A IEEE/ANSI C62.41
Warranty
Limited Warranty 2 Year - (U.S. and Canada)
