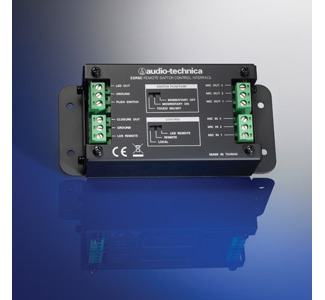

Remote Switch Control Interface

Product Description

The ESRSC is a control interface that enables a contractor to add external control, contact closure, programmable mute functions and status indication to any dynamic or condenser microphone. Switch function can be set to any of three operating modes: Touch-On/Off, Touch-to-talk (momentary on), and Touch-to-mute (momentary off). External contact closure capability permits control of remote devices from a user-supplied switch. A three-position switch “Local/ Remote / LED Remote” – enables the microphone and the LED status to be controlled locally or from an external device. In remote operation, the user-supplied LED and switch operate independently from the microphone. In LED Remote operation, the user-supplied LED is controlled from an external source.

• Versatile control interface provides external control, contactclosure, programmable mute and status indication functions
• Works with any dynamic or condenser microphone
• Ultra-quiet electronic switch with three operating modes:touch on/touch-off,touch-to-talk andtouch-to-mute
• External contact closure capability permits control ofremote devices from user-supplied switch
• Local/remote switching operation allows for use withAcoustic Echo Cancellers (AEC) or other devices requiring independentmicrophone and control outputs
• External LED control allows for accurate depiction of the live status of the microphone
