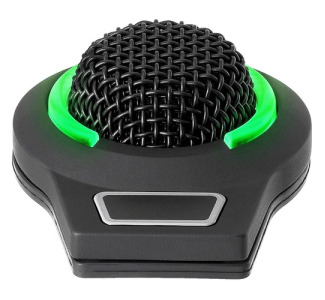

Omnidirectional condenser boundary microphone with self-contained power module, RGB LED ring (7 selectable colors + OFF) indicates mute status, Logic I/O, phantom power only, 5-pin, black

Print Omnidirectional condenser boundary microphone with self-contained power module, RGB LED ring (7 selectable colors + OFF) indicates mute status, Logic I/O, phantom power only, 5-pin, black pageRequest Bulk Pricing CAMCOR ITEM NO. 215011023 | MFG. PART NO. ES945O/FM5
Omnidirectional condenser boundary microphone with self-contained power module, RGB LED ring (7 selectable colors + OFF) indicates mute status, Logic I/O, phantom power only, 5-pin, black
Omnidirectional condenser boundary microphone with self-contained power module, RGB LED ring (7 selectable colors + OFF) indicates mute status, Logic I/O, phantom power only, 5-pin, black
Zoom
Close WindowZoom
Alternate View

MSRP: 279.00

Your Price: $279.00
Quantity

Product Highlights
Omnidirectional Condenser Boundary Microphone with 5-Pin XLR Output and Remote Muting. This phantom-powered omnidirectional condenser boundary microphone features a 5-pin XLR output connector with a ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

Omnidirectional Condenser Boundary Microphone with 5-Pin XLR Output and Remote Muting. This phantom-powered omnidirectional condenser boundary microphone features a 5-pin XLR output connector with a touch-sensitive capacitive-type user switch for enhanced control in conference and boardroom installations. Not only can the switch be configured to toggle between mute and live audio, but, with the microphone's external contact closure, it can also be set up to trigger an external device, such as a camera or the room's lighting.

  • Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
  • Logic I/O capability permits control of remote devices from mics touch-sensitive capacitive-type user switch
  • Highly visible two-state RGB LED ring (7 selectable colors + OFF) indicates mic status
  • Low-profile element provides uniform omnidirectional polar pattern with 360° acceptance angle
  • Mounts unobtrusively in tabletops and panels
  • Self-contained power module with 5-pin XLR output connector
  • Rugged all-metal case with a two-layer steel mesh grille
  • Rubber Isolators provide mechanical dampening of mounting-surface vibration
  • Requires 11V to 52V DC phantom power
  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • RoHS compliantfree from all substances specified in the EU directive on hazardous substances

Specifications

Specifications

Impedance60 ohm
Maximum Frequency Response (Bandwidth)15.0000 kHz
Maximum Frequency Response (Bandwidth)15000 Hz
Maximum SPL (Sound Pressure Level)130 dB
Minimum Frequency Response (Bandwidth)0.0600 kHz
Minimum Frequency Response (Bandwidth)60 Hz
Sensitivity-33 dB
Signal to Noise Ratio73 dB
Current Draw0.007 Amps
DC Voltage52 Volts

Product Dimensions

Depth1.89 in
Height3.34 in
Product Weight0.1301 lbs
Width1.5 in
