Indoor Substation

CAMCOR ITEM NO. 685910358 | MFG. PART NO. N-8050DS

Product Highlights
Indoor substation designed to connect to IP intercom exchange, featuring high quality hands-free conversation. It has contact output (momentarily closed) to remotely control an electric door lock. ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Customers Also Viewed |Reviews

Product Description

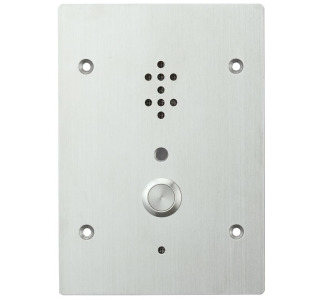

Indoor substation designed to connect to IP intercom exchange, featuring high quality hands-free conversation. It has contact output (momentarily closed) to remotely control an electric door lock. Full conformity with IP54 waterproof and dust-proof standards. Provided with guard nets inside to cover over openings of microphone and speaker, N-8050DS can be installed free from care in public space.

Two-wire connection to N-8000EX or N-8010EX Exchange
Hands-free duplex communication
Separate mic and speaker
Control output (open collector)
IP54 rated
Optional flush-mount back-box, model YC-150
Optional surface-mount back-box, model YS-13A

Specifications

Operating Temperature (Maximum)	122.0000 F
Operating Temperature (Maximum)	50 C
Operating Temperature (Minimum)	-10 C
Operating Temperature (Minimum)	14.0000 F
Audio Frequency Range	300 to 7000 Hz
Maximum transmission range	1500 m
Operating Humidity	Under 90% RH
Power Consumption	2.4 W
Power Source	48 VDC
