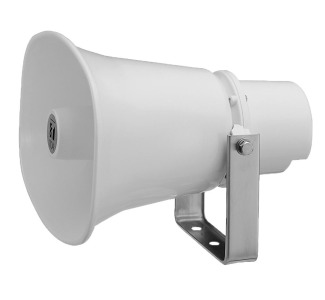

20W Powered Horn Speaker with Digital Power Amplifier

CAMCOR ITEM NO. 685910419 | MFG. PART NO. Q-SC-P620

20W Powered Horn Speaker with Digital Power Amplifier

Product Highlights
The Q-SC-P620 is a highly intelligible and compact horn speaker with a built-in 20W digital power amplifier, that provides public address announcement and remote paging via network video surveillance ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Customers Also Viewed |Reviews

Product Description

The Q-SC-P620 is a highly intelligible and compact horn speaker with a built-in 20W digital power amplifier, that provides public address announcement and remote paging via network video surveillance applications. This powered horn speaker can operate at extreme temperature. It comes with powder-coated finish and stainless steel screws to ensure its weatherproof capability. Ideal choice for both indoor and outdoor application at restricted facilities, train stations, airports and many more.

Integrated 20W power amplifier which utilises latest Class D technology
Switchable Gain: 8dB, 16dB, 24dB and 32dB
Internal volume control to allow on-site tuning
Integration to CCTV systems possible with the majority of IP CCTV systems equipped with an audio line output

Specifications

Maximum Frequency Response (Bandwidth)	10.0000 kHz
Maximum Frequency Response (Bandwidth)	10000 Hz
Maximum SPL (Sound Pressure Level)	113 dB
Minimum Frequency Response (Bandwidth)	0.2500 kHz
Minimum Frequency Response (Bandwidth)	250 Hz
Operating Temperature (Maximum)	131.0000 F
Operating Temperature (Maximum)	55 C
Operating Temperature (Minimum)	-20 C
Operating Temperature (Minimum)	-4.0000 F
Active Power	15 Watt
Current Draw	2 Amps
DC Voltage	12 Volts
Peak Power	25 Watt
