4K HDR HDMI Compact PoC Extender over Long-reach DGKat 2.0

Product Description

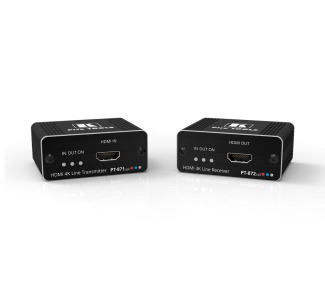

PT-871/2xr-KIT is a high-performance, long-reach DGKat™ 2.0 extender kit for 4K at 60Hz (4:4:4) HDR HDMI 2.0 and HDCP 2.2 signals and 2-way powering over twisted pair. The PT-871xr transmitter converts all input signals into the DGKat™ 2.0 signal. The PT-872xr receiver converts the transmitted DGKat™ 2.0 signal into an HDMI signal. PT-871/2xr-KIT extends video signals to up to 60m (200ft) at 4K at 60Hz (4:4:4) resolution and up to 70m (230ft) at 4K at 60Hz (4:2:0) 24bpp resolution over Kramer shielded cables. NOTE: To reach the distances listed, Kramer UNIKAT non-plenum bulk cable or pre-made assemblies MUST be used. Not for plenum environments.

• High Performance Extender - Professional DGKat™ 2.0 extender kit for providing long-reach signals and 2-way power over twisted pair copper infrastructures
• PT-871/2xr-Kit extender employs low-level video compression technology that delivers visually lossless performance for 4K at 60Hz (4:4:4) HDR signals with near-zero latency
• PT-871xr converts the HDMI input signal into the transmitted DGKat™ 2.0 signal. PT-872xr converts the transmitted DGKat™ 2.0 signal into an HDMI signal
• PT-871/2xr-KIT extends video signals to up to 60m (200ft) at 4K at 60Hz (4:4:4) resolution and up to 70m (230ft) at 4K at 60Hz (4:2:0) 24bpp resolution
• NOTE: To reach the distances listed, Kramer UNIKAT non-plenum bulk cable or pre-made assemblies MUST be used. Not for plenum environments.
• HDMI Signal Extension - HDR, HDMI 2.0 and HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D
• EDID signals are passed through from the source to the display
• I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems
• Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound
• Cost-effective Maintenance - Status LED indicators for HDMI and DGKat™ 2.0 ports facilitate easy local maintenance and troubleshooting
• Easy Installation - Single twisted-pair cable for signal and power wiring
• Compact Pico TOOLS™ fan-less enclosure for device-back mounting, or side-by-side mounting of 4 units in a 1U rack space with the optional RK-4PT rack adapter
• Applications:
• Long-distance AV signal extension for large room connectivity
• AV extension in meeting rooms, boardrooms, hotels and corporate facilities
