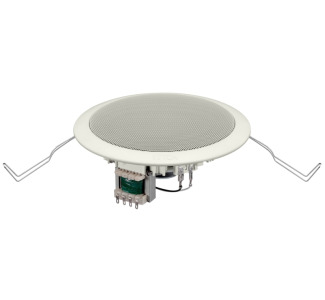

5" Cone-type Ceiling Speaker

CAMCOR ITEM NO. 685910793 | MFG. PART NO. PC-648R

Product Highlights
The PC-648R is a ceiling speaker, integrated with a resin panel and speaker frame, the PC-648R is the ceiling mount speaker with a metal attached. It features spring clamp mechanism for easy speaker ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Customers Also Viewed |Reviews

Product Description

The PC-648R is a ceiling speaker, integrated with a resin panel and speaker frame, the PC-648R is the ceiling mount speaker with a metal attached. It features spring clamp mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer.

5 cone type speaker
100 to 18000Hz frequency response
Integrated with a resin panel and speaker frame
Features spring clamp mechanism for easy speaker mounting to the ceiling
Input impedance can be easily changed by changing the tap position of the transformer
Polypropylene resin (baffle) and surface-treated steel plate net (grille) constructions

Specifications

100V Taps	6 Watt
70V Taps	3 Watt
Maximum Frequency Response (Bandwidth)	18.0000 kHz
Maximum Frequency Response (Bandwidth)	18000 Hz
Minimum Frequency Response (Bandwidth)	0.1000 kHz
Minimum Frequency Response (Bandwidth)	100 Hz
Sensitivity	90 dB
Speaker Diameter (Driver)	126.9999 mm
Speaker Diameter (Driver)	5 in
