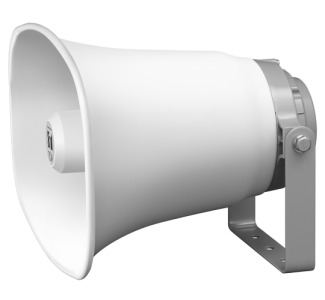

50-watt, 16-ohms Paging Horn Speaker

Print 50-watt, 16-ohms Paging Horn Speaker pageRequest Bulk Pricing CAMCOR ITEM NO. 685910473 | MFG. PART NO. SC-651
50-watt, 16-ohms Paging Horn Speaker
50-watt, 16-ohms Paging Horn Speaker
Zoom
Close WindowZoom
Alternate View
Quantity

Click for your price

Close Window

Usually ships in 1-3 business days

Product Highlights
TOA SC series paging horn speakers provide intelligible voice paging and tone signaling for indoor and outdoor sound system applications. Fully weather-resistant for reliable operation in demanding ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

TOA SC series paging horn speakers provide intelligible voice paging and tone signaling for indoor and outdoor sound system applications. Fully weather-resistant for reliable operation in demanding environmental conditions. The SC Series are easy to install in wall, pole or ceiling-mount applications and include corrosion-resistant stainless-steel mounting hardware. The SC Series models are also designed for intercom talk-back applications requiring dual operation as both a microphone and speaker. Each model is a double re-entrant horn with compression driver for high sensitivity and a lightweight aluminum enclosure. The loud-speaker diaphragm is heat and moisture-resistant to prevent deformation and extend operation. The SC Series are also IP-65 standards compliant for dust and moisture-resistance with a wide operating temperature range from -4° F to 130° F. The SC Series Paging Horn Speakers are backed with a five-year warranty.

  • -Newly developed polyimide diaphragm ensures durability during 50W output
  • Paging horn speaker for voice paging and tone signaling distribution
  • Weather-Resistant to withstand demanding environmental conditions
  • Shock-resistant aluminum oval horn IP65 standards compliant for dust and water-resistance
  • Wide temperature range: -20°C to 55°C (-4°F to 131°F)
  • Steel mounting brackets for easy installation and aiming in wall, pole or ceiling-mount applications

Specifications

Specifications

Impedance16 ohm
Maximum Frequency Response (Bandwidth)6 kHz
Maximum Frequency Response (Bandwidth)6000.0000 Hz
Minimum Frequency Response (Bandwidth)0.2500 kHz
Minimum Frequency Response (Bandwidth)250 Hz
Operating Temperature (Maximum)-20.0000 C
Operating Temperature (Maximum)-4 F
Operating Temperature (Minimum)131 F
Operating Temperature (Minimum)55.0000 C
Power Handling50 Watt
Sensitivity109 dB

Product Dimensions

Depth12.87 in
Height11.71 in
Product Weight7.4957 lbs
Width16.93 in
