70W Power Amplifier

Print 70W Power Amplifier pageRequest Bulk Pricing CAMCOR ITEM NO. 342012025 | MFG. PART NO. RA170
70W Power Amplifier
70W Power Amplifier
Zoom
Close WindowZoom
Alternate View
Your Price: $317.99
Quantity

Usually ships in 1-3 business days
Free ShippingFREE
SHIPPING (?)

This item has Free Shipping!

Camcor, Inc. uses parcel carriers including UPS and FedEx. UPS will NOT deliver to PO Boxes (can only be shipped via US Postal Service). For residential and business orders shipped by motor freight (truck) common carrier, normal delivery is curbside or loading dock (Dock to Dock Delivery) and NOT inside the home or business.

For any special request such as "in home", "inside building", "up elevators", "up stairs", "set up", "lift gate truck", the freight company will assess additional charges. Customers are responsible for any such charges.

This is not a regularly stocked item. Estimated arrival at Camcor, Inc. is 7 to 14 business days. You will be charged upon placing your order.

Product Highlights
The RA170 Power Amplifier was designed especially for the installation contractor. The RA170 is a single rack-space, mono unit with a choice of an RCA or 1/4" unbalanced input. The 70 volt speaker ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

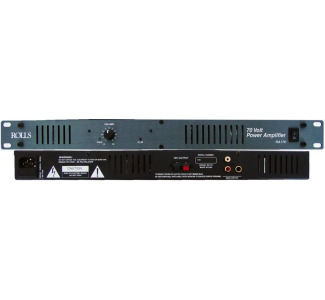

The RA170 Power Amplifier was designed especially for the installation contractor. The RA170 is a single rack-space, mono unit with a choice of an RCA or 1/4" unbalanced input. The 70 volt speaker outputs are provided via spring-loaded terminals - no transformer is required for speaker connection. The front panel includes a Power indicator LED, a Volume control, and two Clip LEDs which indicate circuitry overload. The output circuitry is protected from momentary shorting and excessive load by a specially designed protective circuit.

  • 70 Watts of clean amplification into 70 V system
  • Spring-loaded output terminals
  • Front-panel heat sinking

Back to Top

Specifications

Specifications

Impedance47000 ohm
Maximum Frequency Response (Bandwidth)20 kHz
Maximum Frequency Response (Bandwidth)20000.0000 Hz
Minimum Frequency Response (Bandwidth)0.0700 kHz
Minimum Frequency Response (Bandwidth)70 Hz
Signal to Noise Ratio114 dB
Gain40 dB
Active Power70 Watt
DC Voltage70 Volts

Product Dimensions

Depth5 in
Height1.75 in
Product Weight5.5 lbs
Width19 in
