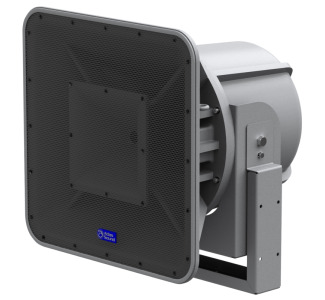

8" 2-way Stadium Horn System, 65° x 65° Dispersion

Product Description

Atlas Sound model AH66-8T-BSG "stadium horn" is ideal for directional sound distribution where full range reproduction, maximum intelligibility and high sound pressure levels are required. Applications include football stadiums, sports arenas, baseball fields, convention centers and auditoriums. Weather resistant construction features of the AH66-8T-BSG include a multiple screen configuration to prevent moisture from damaging internal components, a perforated aluminum screen covers the large horn mouth, a secondary screen is in place forward of the high frequency driver and a third tightly perforated screen protects the 8" cast frame woofer. A "weep" hole is also included on the back of the large horn "bell" to allow evaporation of any condensation that might build up internally. Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.

• (3) Forged Eyebolts Also Included for Suspended Installation
• 100 Watts Power Handling
• Constant Directivity Design Offers Controlled Coverage of 65° Horizontal by 65° Vertical (2kHz Octave Band)
• Driver Compliment Includes 8" Cast Frame Woofer with a Concentrically Mounted 1" Exit Compression Driver Coupled to a 65°H x 65°V HF Horn
• Easy, Weather Resistant Connection via a Convenient Recessed Terminal Block Located on the Bottom of the Loudspeaker
• Efficiency Rating of 100dB (1W/1m)
• Heavy Duty Mounting Bracket (Included) Allows for Easy Installation to Most Any Flat Surface
• Includes a Built-In, High Efficiency 60 Watt 70.7V Transformer
• Maximum Output of 120dB (Rated Power @ 1M)
• Battleship Gray Finish
