8-in Loudspeaker with 25V Transformer

Print 8-in Loudspeaker with 25V Transformer pageRequest Bulk Pricing CAMCOR ITEM NO. 524902007 | MFG. PART NO. WD417-25
8-in Loudspeaker with 25V Transformer
8-in Loudspeaker with 25V Transformer
Zoom
Close WindowZoom
Alternate View

MSRP: 77.99
Savings: $13.00

Your Price: $64.99
Quantity

Usually ships in 1-3 business days

Product Highlights
These loudspeaker/baffle packages feature a walnut grain wall baffle/enclosure with an attractive black fabric grille.Baffles are designed with a 9.5° slope to provide directional sound dispersion  ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

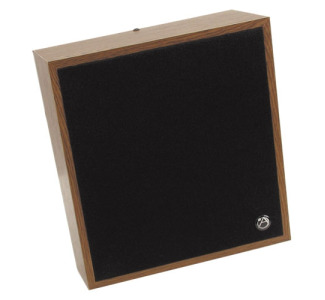

These loudspeaker/baffle packages feature a walnut grain wall baffle/enclosure with an attractive black fabric grille.Baffles are designed with a 9.5° slope to provide directional sound dispersion offset in the direction of radiation.Each package contains a high-quality 8" dia. loudspeaker with a 5-ounce ceramic magnet and pre-assembled 25 Volt transformer.

  • Loudspeaker/Transformer/Baffle Packages are Convenient and Cost Effective
  • Attractive Design is Suitable for Use in a Variety of Surface-Mount Applications
  • 9.5° Sloped Design Offers Directional Sound Projection
  • Includes High-Quality 8" Loudspeaker with Line Transformer
  • Available in 25V and Dual-Voltage Models with Knob/Screwdriver-Adjust Volume Control Option

Specifications

Specifications

25V Taps5 Watt
Impedance8 ohm
Impedance (High Frequency)8 ohm
Impedance (Low Frequency)8 ohm
Impedance (Mid Frequency)8 ohm
Maximum Frequency Response (Bandwidth)15 kHz
Maximum Frequency Response (Bandwidth)15000.0000 Hz
Minimum Frequency Response (Bandwidth)0.0500 kHz
Minimum Frequency Response (Bandwidth)50 Hz
Sensitivity96 dB
Core Size1/2 x 5/8 inch
Flux Density9,200 Gauss
Power5 Watts 4 Watts
Size8 inch
V.C. Diameter1 inch

Product Dimensions

Depth5.5 in
Height10.5 in
Shipping Weight5.5 lbs
Width9.5 in
