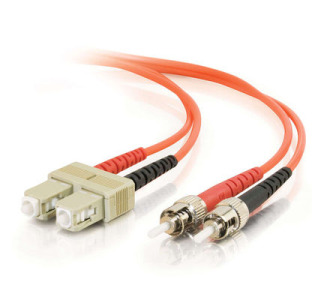

8m SC/ST Duplex 62.5/125 Multimode Fiber Optic Patch Cable

CAMCOR ITEM NO. 607006630 | MFG. PART NO. 9137

8m SC/ST Duplex 62.5/125 Multimode Fiber Optic Patch Cable

MSRP: 27.98
Savings: $2.99

Your Price: $24.99

Quantity

Qualifies for
FREE SHIPPING ^(?)

This item Qualifies towards Free Shipping!

Items marked with this Freight Saver symbol have FREE shipping (via UPS Ground Service within the Continental US) when $ 79.00 or more of designated Freight Saver items are purchased on the same internet order.

Camcor, Inc. uses parcel carriers including UPS and FedEx. UPS will NOT deliver to PO Boxes (can only be shipped via US Postal Service). For residential and business orders shipped by motor freight (truck) common carrier, normal delivery is curbside or loading dock (Dock to Dock Delivery) and NOT inside the home or business.

For any special request such as "in home", "inside building", "up elevators", "up stairs", "set up", "lift gate truck", the freight company will assess additional charges. Customers are responsible for any such charges.

Product Highlights
8m SC/ST duplex 62.5/125 multimode fiber optic patch cable is specifically designed Gigabit Ethernet, FDDI, multimedia, ATM or any applications that requires high speed data transfer. The SC ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Customers Also Viewed |Reviews

Product Description

8m SC/ST duplex 62.5/125 multimode fiber optic patch cable is specifically designed Gigabit Ethernet, FDDI, multimedia, ATM or any applications that requires high speed data transfer. The SC connector features a push-pull locking system while the ST connector features a bayonet locking system. The patented injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs. Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 62.5/125 multimode fiber, immune to electrical interference.

Handle network speeds up to 1000Mbps
100% optically inspected and tested for insertion loss
Immune to electrical interference
Optical multimode 1 (OM1) fiber supporting 200/500MHz.km OFL at 850/1300nm
Jacket material is OFNR riser-rated
Specifically designed for Gigabit Ethernet, FDDI, multimedia, ATM or any application that requires high-speed data transfer

Specifications

Cable Length	26.2467 ft
Cable Length	8 m
Cable Length	800.0000 cm
Attenuation at 1300NM	1.0 dB/km
Attenuation at 850NM	3.5 dB/km
Buffer OD	900 µm
Crush Resistance	750 N/cm
Flex Resistance	5,000 cycles
Impact Resistance	1,000 cycles
Installation (Loaded) Minimum Bend Radius	5.0 cm
Installation Tensile Load	100 N
Jacket OD	2.8 mm
Long-Term (Unloaded) Minimum Bend Radius	3.0 cm
Long-Term Tensile Load	50 N
Maximum Connector Loss	0.50 dB
Maximum Tensile Load	100 N/cm
Operating Temperature	-20 to +70 °C
SC Connector Depth	58 mm
SC Connector Height	10.6 mm
SC Connector Width	26 mm
ST Connector Depth	59 mm
ST Connector Height	9.8 mm
ST Connector Width	19.6 mm
Typical Connector Loss	0.30 dB
Typical Return Loss	-25 dB
