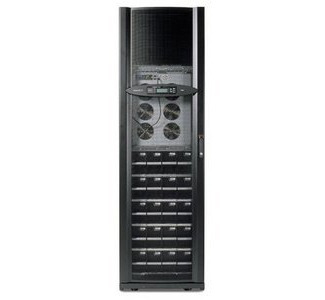

APC Smart-UPS VT 30kVA Tower UPS

CAMCOR ITEM NO. 598805784 | MFG. PART NO. SUVTR30KF3B5S

Product Highlights
Smart-UPS VT 30kVA Tower UPS offers centralized three-phase power protection. Ideal for small data centers, large retail stores, regional offices, and dense power requirements, it includes dual-mains ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Customers Also Viewed |Reviews

Product Description

Smart-UPS VT 30kVA Tower UPS offers centralized three-phase power protection. Ideal for small data centers, large retail stores, regional offices, and dense power requirements, it includes dual-mains input, automatic and maintenance bypasses, and scalable runtime with hot-swappable batteries for increased availability.

Specifications

General Information
Manufacturer	American Power Conversion Corp
Brand Name	APC
Product Line	Smart-UPS
Product Series	VT
Product Type	Dual Conversion Online UPS
Technical Information
Plug/Connector Type	Hard Wire 5-wire 3PH + N + G
Receptacles	1 x Hard Wire 5-wire 3PH + N + G - Backup/Surge-protected 5 x NEMA L21-20 - Backup/Surge-protected
Power Description
Load Capacity	30 kVA/24 kW
Input Voltage	110 V AC 220 V AC
Input Voltage Range	208 V AC 3-phase Nominal 165 V AC to 240 V AC Mains Operation
Output Voltage	120 V AC Nominal 208 V AC 3-phase Nominal
Frequency	57 to 63 Hz Output 40 to 70 Hz Input
Input Current	80 A
Current	80 A Maximum Input Current
Scalability
Modules	3 x Battery Module
Management
Network Management	SNMP Manageable Included
Overload Protection	Resettable circuit breakers
Bypass Switch	Maintenance Static
Emergency Power OFF	Yes
Interfaces/Ports
Interfaces/Ports	RS-232
Modular Slots	2 x Battery
Battery Information
Batteries	Valve-regulated Lead Acid (VRLA) User Replaceable Hot-swappable
Backup/Run Time	0.09 Hour 24 kW Full Load 0.31 Hour 12 kW Half Load
Battery Recharge Time	3 Hour Typical
Physical Characteristics
Form Factor	Tower
Height	78.5"
Width	23.6"
Depth	42"
Weight (Approximate)	1444 lb
Miscellaneous
Package Contents	Smart-UPS VT 30kVA Tower UPS CD with software Installation guide Power modules ship installed Smart UPS signalling RS-232 cable Start up included User Manual Web/SNMP Management Card
Additional Information	Output Voltage Note: Configurable for 200 : 208 or 220V 3 Phase nominal output voltage
Warranty
Limited Warranty	1 Year
Parts Warranty/Labor	1 Year
