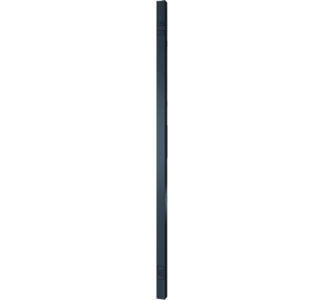

APC Switched Rack PDU
Product Highlights
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power ... More
Product Highlights
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power ... More
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
General Information | |
---|---|
Manufacturer | American Power Conversion Corp |
Brand Name | APC |
Product Line | Switched Rack |
Product Type | PDU |
Additional Product Specifications | |
Full Product Specifications | Click to view |
Technical Information | |
Input Receptacles | 1 x NEMA L5-20P |
Output Receptacles | 24 x NEMA 5-20R |
Power Description | |
Input Voltage | 120 V AC |
Output Voltage | 120 V AC |
Power Rating | 1.92 kVA |
Input Current | 20 A |
Physical Characteristics | |
Form Factor | Rack-mountable |
Rack Height | 0U |
Height | 70.5" |
Width | 2.2" |
Depth | 1.8" |
Weight (Approximate) | 14.37 lb |
Miscellaneous | |
Package Contents |
|
Green Compliant | Yes |
Green Compliance Certificate/Authority | |
Warranty | |
Limited Warranty | 2 Year |
![]() |
![]() |
![]() |
![]() |
![]() |
