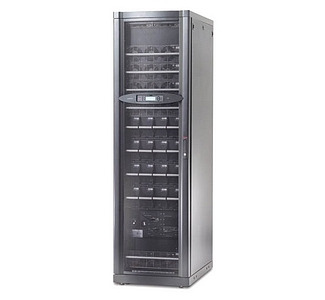

CAMCOR ITEM NO. 598807926 | MFG. PART NO. SY40K40F
Product Highlights
Advances in Large Corporation computing, storage technologies, an increasing power demand, requires a change in Large Corporation power protection technology. Symmetra PX 40000VA, three phase input/ ... More
California Residents:Advances in Large Corporation computing, storage technologies, an increasing power demand, requires a change in Large Corporation power protection technology. Symmetra PX 40000VA, three phase input/ three phase output (3:3), is a single unit, composed of modular components. This modular architecture provides the foundation of building and scaling near-continuous availability power systems with a flexible range of power capacity. The Symmetra PX 40000VA packages the high availability requirements of easy power and runtime scalability into a very small footprint. Combined with the complete line of APC datacenter protection software and accessories it provides the four most critical elements of total datacenter protection.
| General Information | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Brand Name | APC by Schneider Electric |
| Product Line | Symmetra |
| Product Series | PX |
| Product Type | Dual Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | Screw Terminal |
| Receptacle Detail | 1 x Screw Terminal |
| Bypass Switch | Static |
| Emergency Power OFF | Yes |
| Power Description | |
| Load Capacity | 40 kVA |
| Output Voltage | 208 V AC |
| Power Consumption | 40 kW |
| Waveform Type | Sine Wave |
| Management | |
| Network Management | SNMP Manageable |
| Alarm | |
| Battery Management | Intelligent Battery Management |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Total Number of Expansion Slots | 2 |
| Battery Information | |
| Battery Characteristics | Maintenance-free |
| Battery Chemistry | Sealed Lead Acid (SLA) |
| Backup/Run Time (Full Load) | 3.80 Minute |
| Backup/Run Time (Half Load) | 14.50 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Hot Swappable | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission | 64 dB(A) |
| Thermal Dissipation | 3402.85 W |
| Physical Characteristics | |
| Color | Black |
| Height | 82" |
| Width | 24" |
| Depth | 35.5" |
| Rack Height | 42U |
| Weight (Approximate) | 1705 lb |
| Miscellaneous | |
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 2 Year |
| |
|
|
|
|
