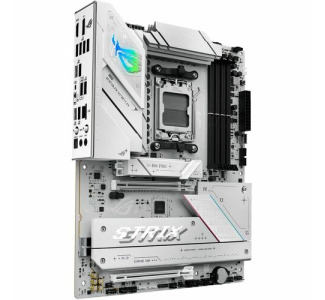

Asus ROG Strix B850-A GAMING WIFI Gaming Desktop Motherboard - AMD B850 Chipset - Socket AM5 - ATX

Print Asus ROG Strix B850-A GAMING WIFI Gaming Desktop Motherboard - AMD B850 Chipset - Socket AM5 - ATX pageRequest Bulk Pricing CAMCOR ITEM NO. 640506796 | MFG. PART NO. ROG STRIXB850-AGAMIN
Asus ROG Strix B850-A GAMING WIFI Gaming Desktop Motherboard - AMD B850 Chipset - Socket AM5 - ATX
Asus ROG Strix B850-A GAMING WIFI Gaming Desktop Motherboard - AMD B850 Chipset - Socket AM5 - ATX
Zoom
Close WindowZoom
Alternate View
Your Price: $349.99
Quantity

Usually ships in 1-3 business days

Product Highlights
ROG STRIX B850-A GAMING WIFIAMD B850 ATX motherboard with 14+2+2 power stages, DDR5 support with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, four M.2 slots, PCIe®5.0 x16 SafeSlots with PCIe Slot ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

ROG STRIX B850-A GAMING WIFI

AMD B850 ATX motherboard with 14+2+2 power stages, DDR5 support with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, four M.2 slots, PCIe®5.0 x16 SafeSlots with PCIe Slot Q-Release Slim, USB 20Gbps Type-C®, USB

10Gbps Type-C®, ASUS AI Advisor, AI Networking II, and Aura Sync RGB lighting.

  • Ready for Advanced AI PCs:Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 series desktop processors
  • Intelligent Control:ASUS AI Advisor, AI Networking II and AEMP to simplify setup and improve performance
  • Robust Power Solution: 14+2+2 power solution rated for 80A per stage with an 8+8-pin ProCool power connector, high-quality alloy chokes, and durable capacitors to support multi-core processors
  • Optimized Thermal Design: Massive heatsinks bridged to the VRMs with high-conductivity thermal pads and an integrated I/O cover
  • Latest M.2 Support:One onboard PCIe®5.0 M.2 slot and three PCIe 4.0 M.2 slots, all with substantial cooling solutions
  • Abundant Connectivity: USB 20Gbps Type-C®, USB 10Gbps Type-C®, USB 10Gbps Type-C®front-panel connector, six additional USB 5Gbps ports, PCIe 5.0 x16 SafeSlots, HDMI™ port and DisplayPort port
  • High-Performance Networking: On-board WiFi 7 (802.11be) with Intel 2.5 Gb Ethernet
  • DIY Friendly Design:PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield
  • Immersive Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier, along with Dolby Atmos®
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including three addressable Gen 2 headers
  • Renowned Software:ASUS DriverHub, TurboV Core, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard

ASUS AI INTELLIGENCE | ASUS AI ADVISOR

Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.



Back to Top

Specifications

General Information
ManufacturerASUS Computer International
Brand NameAsus ROG
Product LineStrix
Product ModelB850-A GAMING WIFI
Product TypeGaming Desktop Motherboard
Technical Information
AI-poweredYes
Processor & Chipset
Chipset ManufacturerAMD
Chipset ModelB850
Total Processor Supported1
Processor SocketSocket AM5
Processor Supported
  • Ryzen 7
  • Ryzen 8
  • Ryzen 9
    • Memory
    Number of Memory Slots4
    Memory Form Factor
  • DIMM
  • UDIMM
    • Maximum Memory Supported192 GB
    Memory TechnologyDDR5 SDRAM
    Memory Speed Supported8000 MHz
    Error CheckingECC
    I/O Controller
    Controller TypeSerial ATA/600
    RAID SupportedYes
    RAID Levels
  • 0
  • 1
  • 5
  • 10
    • Video
    Onboard VideoCPU Dependent Video
    Audio
    Audio Channels7.1
    Network & Communication
    BluetoothYes
    Bluetooth StandardBluetooth 5.4
    Gigabit EthernetYes
    2.5Gigabit EthernetYes
    Wireless LANYes
    Wireless LAN StandardIEEE 802.11be
    I/O Expansions
    Total Number of Expansion Slots3
    PCI Express Standard
  • PCI Express 4.0
  • PCI Express 5.0
    • Total Number of PCI Express Slots3
    Number of PCI Express x16 Slots3
    Interfaces/Ports
    Total Number of USB Ports10
    S/PDIFYes
    VGAYes
    HDMIYes
    HDMI Version2.1
    DisplayPortYes
    Number of Network (RJ-45) Ports1
    ThunderboltYes
    Number of Thunderbolt 4 Ports2
    Onboard Interfaces
    Number of SATA Interfaces2
    Number of M.2 Interfaces4
    Total Number of Onboard USB Ports7
    Number of Onboard USB 2.0 Ports4
    Physical Characteristics
    Form FactorATX
    Width12"
    Depth9.6"
    Miscellaneous
    Package Contents
    • Strix B850-A GAMING WIFI Gaming Desktop Motherboard
    • 2 x SATA 6Gb/s cables
    • 1 x ASUS WiFi Q-Antenna
    • 1 x Cable ties package
    • 1 x M.2 Q-Latch package
    • 1 x M.2 Q-Slide package
    • 1 x ROG key chain
    • 1 x ROG Strix stickers
    • 4 x M.2 rubbers
    • 1 x Quick start guide
    Brand CompatibilityAMD
    Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
  • Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
    • Warranty
    Limited Warranty3 Year
