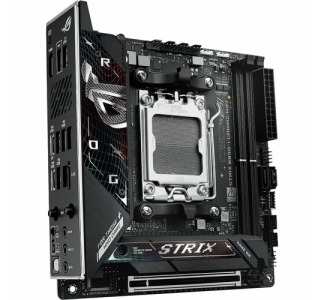

Asus ROG Strix B850-I GAMING WIFI Gaming Desktop Motherboard - AMD B850 Chipset - Socket AM5 - Mini ITX

Print Asus ROG Strix B850-I GAMING WIFI Gaming Desktop Motherboard - AMD B850 Chipset - Socket AM5 - Mini ITX pageRequest Bulk Pricing CAMCOR ITEM NO. 640506798 | MFG. PART NO. ROG STRIXB850-IGAMIN
Asus ROG Strix B850-I GAMING WIFI Gaming Desktop Motherboard - AMD B850 Chipset - Socket AM5 - Mini ITX
Asus ROG Strix B850-I GAMING WIFI Gaming Desktop Motherboard - AMD B850 Chipset - Socket AM5 - Mini ITX
Zoom
Close WindowZoom
Alternate View
Your Price: $418.99
Quantity

Usually ships in 1-3 business days

Product Highlights
ROG STRIX B850-I GAMING WIFIAMD B850 Mini-ITX motherboard with 10+2+1 power stages, DDR5 slots with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, two M.2 slots, PCIe®5.0 x16 SafeSlots with PCIe Slot ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

ROG STRIX B850-I GAMING WIFI

AMD B850 Mini-ITX motherboard with 10+2+1 power stages, DDR5 slots with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, two M.2 slots, PCIe®5.0 x16 SafeSlots with PCIe Slot Q-Release Slim, USB 20Gbps Type-C®, ASUS AI Advisor, AI Overclocking, AI Networking II, and Aura Sync RGB lighting.

  • AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 series desktop processors
  • Intelligent Control:ASUS AI Advisor, AI Overclocking, AI Networking II and AEMP to simplify setup and improve performance
  • Robust Power Solution: 10+2+1 power solution rated for up to 70A per stage with ProCool power connectors
  • Optimized Thermal Design: Massive heatsinks with integrated I/O cover and high-conductivity thermal pads
  • Latest M.2 Support:Two onboard PCIe®5.0 M.2 slots, one cooled by a large heatsink to maximize performance, and the other for additional storage
  • Abundant Connectivity: USB 20Gbps Type-C®port, USB 10Gbps Type-C®front-panel connector, five additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, HDMI™ port
  • High-Performance Networking: On-board WiFi 7 (802.11be) with Intel®2.5 Gb Ethernet
  • DIY Friendly Design:PCIe Slot Q-Release Slim, M.2 Q-Slide, M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack™ button, Clear CMOS button, FlexKey button and pre-mounted I/O shield
  • Immersive Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier, along with Dolby Atmos®
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including two addressable Gen 2 headers
  • Renowned Software:ASUS DriverHub, TurboV Core, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard.

ASUS AI INTELLIGENCE | ASUS AI ADVISOR

Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

AI OVERCLOCKING

ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

AI NETWORKING II

AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.



Back to Top

Specifications

General Information
ManufacturerASUS Computer International
Brand NameAsus ROG
Product LineStrix
Product ModelB850-I GAMING WIFI
Product TypeGaming Desktop Motherboard
Technical Information
AI-poweredYes
Processor & Chipset
Chipset ManufacturerAMD
Chipset ModelB850
Total Processor Supported1
Processor SocketSocket AM5
Processor Supported
  • Ryzen 7
  • Ryzen 8
  • Ryzen 9
    • Memory
    Number of Memory Slots2
    Memory Form Factor
  • DIMM
  • UDIMM
    • Maximum Memory Supported96 GB
    Memory TechnologyDDR5 SDRAM
    Memory Speed Supported8400 MHz
    Error CheckingECC
    I/O Controller
    Controller TypeSerial ATA/600
    Video
    Onboard VideoCPU Dependent Video
    Audio
    Audio Channels7.1
    Network & Communication
    BluetoothYes
    Bluetooth StandardBluetooth 5.4
    Gigabit EthernetYes
    2.5Gigabit EthernetYes
    Wireless LANYes
    Wireless LAN StandardIEEE 802.11be
    I/O Expansions
    Total Number of Expansion Slots2
    PCI Express Standard
  • PCI Express 4.0
  • PCI Express 5.0
    • Total Number of PCI Express Slots2
    Number of PCI Express x16 Slots2
    Interfaces/Ports
    Total Number of USB Ports8
    S/PDIFYes
    VGAYes
    HDMIYes
    HDMI Version2.1
    DisplayPortYes
    Number of Network (RJ-45) Ports1
    Onboard Interfaces
    Number of SATA Interfaces2
    Number of M.2 Interfaces2
    Total Number of Onboard USB Ports5
    Number of Onboard USB 2.0 Ports2
    Physical Characteristics
    Form FactorMini ITX
    Width6.7"
    Depth6.7"
    Miscellaneous
    Package Contents
    • Strix B850-I GAMING WIFI Gaming Desktop Motherboard
    • 2 x SATA 6Gb/s cables
    • 1 x ASUS WiFi Q-Antenna
    • 1 x Cable ties package
    • 1 x M.2 backplate Q-Latch package(s)
    • 1 x M.2 Q-Slide package
    • 1 x ROG key chain
    • 1 x ROG Strix stickers
    • 1 x M.2 backplate rubber package(s)
    • 1 x Quick start guide
    Brand CompatibilityAMD
    Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
  • Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
    • Warranty
    Limited Warranty3 Year
