CAMCOR ITEM NO. 640506814 | MFG. PART NO. ROG STRIXB860-IGAMIN
Product Highlights

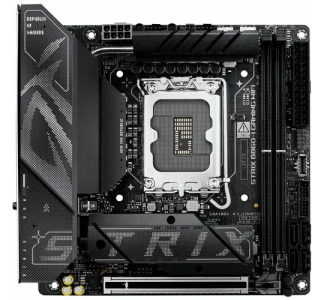

ROG STRIX B860-I GAMING WIFIThe ROG Strix B860-I Gaming WiFi is designed to dominate with Intel Core Ultra Processors(Series 2). Its advanced power design and AI solutions drive top-tier performance, ... More
California Residents:ROG STRIX B860-I GAMING WIFI
The ROG Strix B860-I Gaming WiFi is designed to dominate with Intel Core Ultra Processors(Series 2). Its advanced power design and AI solutions drive top-tier performance, while Thunderbolt 4, WiFi 7 and high-speed DDR5 slots offer cutting-edge connectivity. This motherboard delivers the power and speed needed for elite gaming and demanding AI applications.
ASUS AI INTELLIGENCE | ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.
Performance OVERCLOCKING | NPU BOOST
The integrated NPU in Intel® Core Ultra Processors (Series 2) efficiently accelerates AI workflows - and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.
Asynchronous Clock
For next-level frequency flexibility, the ROG Strix B860-I features a built-in clock generator that isolates CPU base clock from memory, NPU, D2D and NGU. Drive memory, NPU and others performance to their absolute brink while maintaining the stability of CPU clock domains.
Separate CPU BCLK from other domains for unfettered overclocking.
| General Information | |
|---|---|
| Manufacturer | ASUS Computer International |
| Brand Name | Asus ROG |
| Product Line | Strix |
| Product Model | B860-I GAMING WIFI |
| Product Type | Gaming Desktop Motherboard |
| Technical Information | |
| AI-powered | Yes |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | B860 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1851 |
| Processor Supported | Core Ultra |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 9066 MHz |
| Error Checking | ECC |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11be |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| PCI Express Standard | PCI Express 5.0 |
| Total Number of PCI Express Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 2 |
| S/PDIF | Yes |
| VGA | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 5 |
| Number of Onboard USB 2.0 Ports | 2 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.7" |
| Depth | 6.7" |
| Miscellaneous | |
| Package Contents |
|
| Brand Compatibility | Intel |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| |
|
|
|
|
