CAMCOR ITEM NO. 524900862 | MFG. PART NO. 8CXT60
Product Highlights

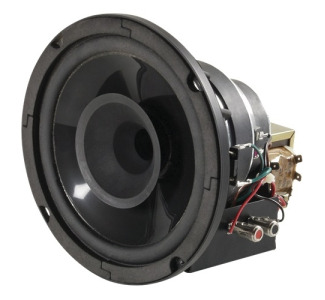

Model 8CXT60 is a 150 watt loudspeaker that combines an 8" diameter, low frequency transducer and a 1" exit, true compression driver. The unit features a curvilinear, polypropylene cone for lower ... More
California Residents:Model 8CXT60 is a 150 watt loudspeaker that combines an 8" diameter, low frequency transducer and a 1" exit, true compression driver.
The unit features a curvilinear, polypropylene cone for lower harmonic distortion, and a built-in crossover network for proper frequency transition between the two reproducers.
Model 8CXT60 operates within a frequency response range of 48 Hz to 18 kHz (±10dB) with a sensitivity of 92dB and a dispersion angle of 90°.
Model 8CXT60 includes a factory installed, high efficiency, 60W, 70.7/100V step down line transformer. Power taps are provided at 7.5, 15, 30 and 60 Watts (@70.7V).
| General Information | |
|---|---|
| Manufacturer | Atlas Sound LP. |
| Brand Name | Atlas Sound |
| Product Model | 8CXT60 |
| Product Type | Speaker |
| Technical Information | |
| Crossover Type | 2-way |
| Crossover Supported | Yes |
| Crossover Frequency | 2 kHz |
| RMS Output Power | 150 W |
| Driver Type | |
| Minimum Frequency Response | 33 Hz |
| Maximum Frequency Response | 21 kHz |
| Sound Pressure Level | 110 dB |
| Sensitivity | 92 dB |
| Physical Characteristics | |
| Color | Black |
| Material | |
| Depth | 8.3" |
| Diameter | 8" |
| Warranty | |
| Limited Warranty | 5 Year |
| |
|
|
|
|
