Atlas Sound C803A Speaker - 16 W RMS

Print Atlas Sound C803A Speaker - 16 W RMS pageRequest Bulk Pricing CAMCOR ITEM NO. 524901141 | MFG. PART NO. C803A
Atlas Sound C803A Speaker - 16 W RMS
Atlas Sound C803A Speaker - 16 W RMS
Zoom
Close WindowZoom
Alternate View

MSRP: 49.99
Savings: $9.00

Your Price: $40.99
Quantity

Usually ships in 1-3 business days

Product Highlights
Model C803A. High-quality, 16-watt Model C803A utilizes a postmounted tweeter which adds strength to the assembly and provides an attractive appearance. This coaxial loudspeaker features a 70 Hz- ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

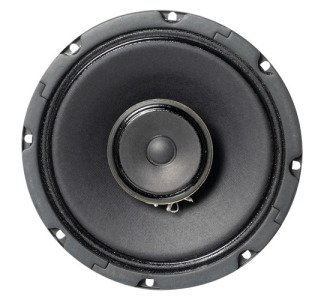

Model C803A. High-quality, 16-watt Model C803A utilizes a postmounted tweeter which adds strength to the assembly and provides an attractive appearance.

This coaxial loudspeaker features a 70 Hz- 15.5 kHz, 5dB frequency response and a broad, uniform dispersion pattern of 120. Such provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems.

The C803A combines a full-size 8" (203mm) dia. low-frequency reproducer and a 3" (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10 oz. (260g) ceramic magnet; the tweeter has a 2.35 oz. (67g) ceramic magnet and the unit has a peak sensitivity of 98dB (at 1 watt, 1 meter).



Specifications

General Information
ManufacturerAtlas Sound LP.
Brand NameAtlas Sound
Product ModelC803A
Product TypeSpeaker
Technical Information
Crossover SupportedYes
Crossover Frequency2.80 kHz
RMS Output Power16 W
Driver Type
  • 8" Woofer
  • 3" Tweeter
  • Minimum Frequency Response70 Hz
    Maximum Frequency Response15.50 kHz
    Impedance8 Ohm
    Sensitivity98 dB
    Physical Characteristics
    ColorBlack
    Material
  • Ceramic
  • Anodized Aluminum
  • Copper
  • Paper
  • Depth2.9"
    Weight (Approximate)2.40 lb
    Miscellaneous
    Certifications & StandardsUL 1480
    Warranty
    Limited Warranty5 Year
