CAMCOR ITEM NO. 524901170 | MFG. PART NO. DLS4
Product Highlights

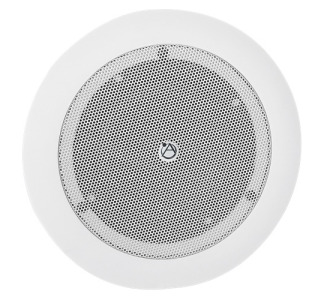

4" Dog Leg Speaker with 8w Transformer & Press Fit GrillThe DLS4 was specially designed for use in low ceiling paging and background music applications such as airports where wide dispersion, ... More
California Residents:4" Dog Leg Speaker with 8w Transformer & Press Fit Grill
The DLS4 was specially designed for use in low ceiling paging and background music applications such as airports where wide dispersion, high efficiency and ease of installation are required.
The DLS4 is also well suited for use in rail stations, retail stores and hospitality applications.
The system consists of 4" high efficiency driver with a unique (patent pending) tap selector switch design to allow for easy system tuning. A full selection of taps up to 8 watts as well as an 8 ohm bypass setting is included for maximum system versatility. This switch "knob" also functions as a diffuser cone, providing smooth, even dispersion of the high frequency content from the center of the 4" driver.
| General Information | |
|---|---|
| Manufacturer | Atlas Sound LP. |
| Brand Name | Atlas Sound |
| Product Model | DLS4 |
| Product Type | Speaker |
| Technical Information | |
| RMS Output Power | 16 W |
| Driver Type | 4" Paper Woofer |
| Minimum Frequency Response | 150 Hz |
| Maximum Frequency Response | 17 kHz |
| Impedance | 8 Ohm |
| Sensitivity | 92 dB |
| Physical Characteristics | |
| Weight (Approximate) | 3 lb |
| |
|
|
|
|
