Atlas Sound FD70W Speaker - 15 W RMS

Name: Atlas Sound FD70W Speaker - 15 W RMS
Brand: Atlas
Price: 45.99 USD
Availability: InStock

Print Atlas Sound FD70W Speaker - 15 W RMS page

CAMCOR ITEM NO. 524901333 | MFG. PART NO. FD70W

Product Highlights
Model FD70W is a cost effective assembly that include high-quality 8" loudspeaker, 70.7V transformer and screw type grill. Unit is shipped assembled, ready for installation.The FD70W features a ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Related Documents |Customers Also Viewed |Reviews

Product Description

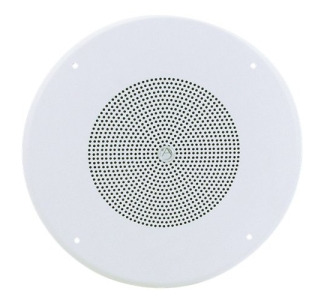

Model FD70W is a cost effective assembly that include high-quality 8" loudspeaker, 70.7V transformer and screw type grill. Unit is shipped assembled, ready for installation.

The FD70W features a conventional cone design loudspeaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance.

Speaker / transformer is factory installed on a 62-8 style baffle.

Specifications

General Information
Manufacturer	Atlas Sound LP.
Brand Name	Atlas Sound
Product Series	FD
Product Model	FD70W
Product Type	Speaker
Technical Information
RMS Output Power	15 W
Minimum Frequency Response	100 Hz
Maximum Frequency Response	10 kHz
Impedance	8 Ohm
Sensitivity	97 dB
Physical Characteristics
Color	White
Material	Paper
Depth	2.6"
Diameter	8"
Weight (Approximate)	2.40 lb
Miscellaneous
Package Contents	FD70W Speaker Screw Type Grill Baffle EZ Mounting Assemblies
Warranty
Limited Warranty	5 Year
