CAMCOR ITEM NO. 524900019 | MFG. PART NO. PD-30T
Product Highlights

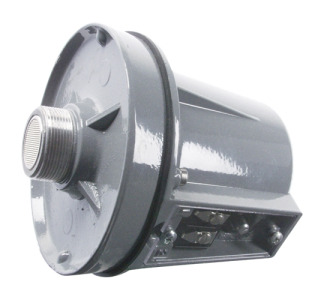

The PD-30T is a fully environment-resistant compression driver for indoor or outdoor applications recommended for use in expansive and/or high-ambient sound-level areas. The unit has a power rating ... More
California Residents:The PD-30T is a fully environment-resistant compression driver for indoor or outdoor applications recommended for use in expansive and/or high-ambient sound-level areas.
The unit has a power rating of 30 watts, a 1.5" voice coil and a plane wave frequency response of 300 - 3,900 Hz (+5dB).
Transformer-equipped Model PD-30T incorporates the exclusive Atlas Sound Vari-Tap® Control/Connect Center with a screwdriver selectable ohms/watts switch.
The integral 70V line matching transformer is varnish impregnated for maximum environment resistance and life expectancy. It also includes a protective terminal cover with built-in strain relief to assure secure cable connection.
The PD-30T is terminated in standard 1-3/8"-18" thread male couplings for use with screw-on horns.
| General Information | |
|---|---|
| Manufacturer | Atlas Sound LP. |
| Brand Name | Atlas Sound |
| Product Model | PD-30T |
| Product Type | Tweeter |
| Technical Information | |
| RMS Output Power | 30 W |
| Driver Type | 4.50" Tweeter |
| Minimum Frequency Response | 300 Hz |
| Maximum Frequency Response | 3.90 kHz |
| Impedance | 2.5 Kilo Ohm |
| Sound Pressure Level | 125 dB |
| Sensitivity | 114 dB |
| Physical Characteristics | |
| Speaker Installation | Indoor/Outdoor |
| Height | 4.5" |
| Width | 4.5" |
| Depth | 4.5" |
| |
|
|
|
|
