CAMCOR ITEM NO. 524901823 | MFG. PART NO. SM12SUB70-W
Product Highlights

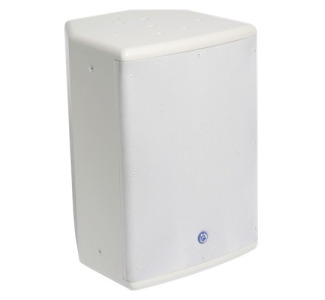

The Atlas Sound SM12SUB70 is designed for 8? and 70.7V distributed audio applications where low frequency enhancement is desired. This model features a unique compact cabinet design with multiple ... More
California Residents:The Atlas Sound SM12SUB70 is designed for 8? and 70.7V distributed audio applications where low frequency enhancement is desired. This model features a unique compact cabinet design with multiple ΒΌ"-20 inserts to allow easy suspension or wall mounting.
The SM12SUB70 includes a built in 18dB / octave three-pole passive crossover network coupled to a long-excursion 12" woofer housed in multi-angle wood enclosure system. The passive crossover eliminates the need for a separate crossover or dedicated amplifier to power the speaker.
A premium 70.7V transformer allows the SM12SUB70 to be paralleled with any 70.7V commercial audio system to provide extended low frequency response and more overall audio impact for foreground music systems.
(Unit is also 8ohm compatible).
| General Information | |
|---|---|
| Manufacturer | Atlas Sound LP. |
| Brand Name | Atlas Sound |
| Product Model | SM12SUB70-W |
| Product Type | Woofer |
| Technical Information | |
| RMS Output Power | 250 W |
| Driver Type | 12" Woofer |
| Minimum Frequency Response | 45 Hz |
| Maximum Frequency Response | 125 Hz |
| Impedance | 8 Ohm |
| Crossover Frequency | 120 Hz |
| Sensitivity | 89 dB |
| Physical Characteristics | |
| Color | White |
| Material | Wood |
| Form Factor | |
| Height | 19" |
| Width | 14.5" |
| Depth | 14.1" |
| |
|
|
|
|
