Atlas Sound Welded Rack 18.5" Deep, 35RU

Print Atlas Sound Welded Rack 18.5" Deep, 35RU pageRequest Bulk Pricing CAMCOR ITEM NO. 524900806 | MFG. PART NO. 235-18
Atlas Sound Welded Rack 18.5
Atlas Sound Welded Rack 18.5" Deep, 35RU
Zoom
Close WindowZoom
Alternate View

MSRP: 1075.99
Savings: $213.00

Your Price: $862.99
Quantity

Usually ships in 1-3 business days

Product Highlights

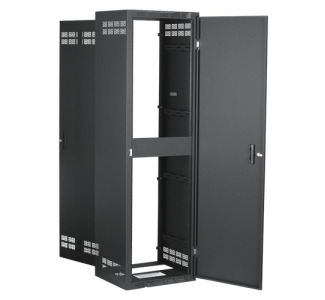

The economical Atlas Sound 235-18 cabinet is 22 5/16" wide, 18 1/2" deep, and contains 35RU verticalpanel spaces. The 235-18 cabinet includes one pair of 11 ga. CRS adjustable mounting rails.The ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

The economical Atlas Sound 235-18 cabinet is 22 5/16" wide, 18 1/2" deep, and contains 35RU vertical
panel spaces. The 235-18 cabinet includes one pair of 11 ga. CRS adjustable mounting rails.

The series is constructed of 16 ga. CRS and include base, top panel, side panels, mounting rails, a removable rear door with cylinder lock and flush door pull handle.

Offers several installer-friendly advantages, including an expanded 6RU opening in the cabinet top and bottom which can be left open for wire access and/or ventilation, or closed using a standard vent or solid panels.

Rear doors (included with all models) are hung with quick-release spring hinges which allow them to be rotated 180° for right or left-hand opening. If a front door is ordered, it will be keyed differently than the rear door for security.

Rack rails are precision tapped 10-32 and recessed 11/16" (17.5mm). These plated rails include convenient RU indicator hash marks to aid in equipment alignment. Rails are standard E.I.A. 5/8"-5/8"-1/2" spacing.

Conduit arrays are located on the top and bottom surface panels, as well as the top and bottom back flanges. Flange arrays consist of five knockouts, three 1" (25mm) standard, and two 1/2" (13mm) x 3/4" (19mm) concentric. Surface arrays are comprised of 4 knockouts, two, 1" (25mm) standard knockouts and two 1/2" (13mm) x 3/4" (19mm) concentric.

Stamped, perforated vents are located on all sides as well as on the rear door to allow for maximum air convection.
Cabinet surfaces are phosphate pre-treated for proper paint adhesion of the textured black epoxy finish.



Specifications

General Information
ManufacturerAtlas Sound LP.
Brand NameAtlas Sound
Product Series200
Product Model235-18
Product TypeRack Cabinet
Technical Information
Features
  • Adjustable Mounting Rails
  • Cable Management
  • Physical Characteristics
    Form FactorFloor Standing
    ColorBlack
    MaterialCold-rolled Steel (CRS)
    Base/Bottom Material Gauge16
    Frame Material Gauge16
    Rail Material Gauge11
    Roof/Top Material Gauge16
    Side Panel Material Gauge16
    Height65.5"
    Width22.3"
    Depth18.5"
    Rack Height35U
    Rack Depth17"
    Miscellaneous
    Certifications & Standards
    • UL 1678
    • ULUS
    • EIA
    Country of OriginUnited States
