Black Audio and Control 22 AWG 1 Pair Shielded Plenum

Name: Black Audio and Control 22 AWG 1 Pair Shielded Plenum
Brand: Liberty
Price: 235.44 USD
Availability: InStock

Print Black Audio and Control 22 AWG 1 Pair Shielded Plenum page

CAMCOR ITEM NO. 536005959 | MFG. PART NO. 22-2C-PSH-BLK

Black Audio and Control 22 AWG 1 Pair Shielded Plenum

Product Highlights
Black Audio and control 22 AWG 1 pair shielded plenum. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800. ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Customers Also Viewed |Reviews

Product Description

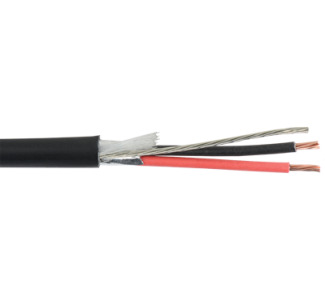

Black Audio and control 22 AWG 1 pair shielded plenum. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.

7-strand annealed bare copper conductors
Plenum rated PVC alloy insulation
Twisted, shielded with drain out
Plenum rated PVC alloy jacket
NEC CMP, CEC CMP FT6, RoHS compliant
1000 foot spools

Specifications

Cable Length	304.8000 m
Impedance	47 ohm
Cable Length	30479.9990 cm
Cable Length	1000 ft
Strand Gauge	0.0096 AWG
DCR	17.5 per 1000 feet
Voltage	300 Volts
Capacitance	39.7 pF
Conductor Gauge	22 AWG
Temperature	10 to 75 °C
Overall Diameter	0.116 inch
Jacket Thickness	0.015 inch
Current Draw	2.8 Amps
AC Voltage	300 Volts
