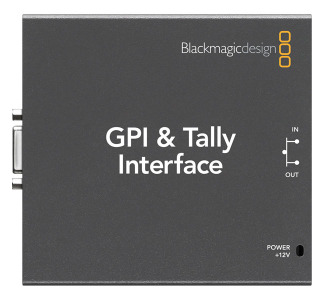

Blackmagic Design SWTALGPI8 GPI & Tally Interface for ATEM Production Switchers

Name: Blackmagic Design SWTALGPI8 GPI & Tally Interface for ATEM Production Switchers
Brand: Blackmagic
Price: 495.00 USD
Availability: InStock

Print Blackmagic Design SWTALGPI8 GPI & Tally Interface for ATEM Production Switchers page

CAMCOR ITEM NO. 887000082 | MFG. PART NO. BMD-SWTALGPI8

Blackmagic Design SWTALGPI8 GPI & Tally Interface for ATEM Production Switchers

Product Highlights
Blackmagic Design GPI & Tally Interface for ATEM Production Switchers displays tallies to indicate the on-air status of video signals. It has 8 contact closure inputs and 8 contact closure ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Customers Also Viewed |Reviews

Product Description

Blackmagic Design GPI & Tally Interface for ATEM Production Switchers displays tallies to indicate the on-air status of video signals. It has 8 contact closure inputs and 8 contact closure outputs for easily connecting to ATEM switchers and Videohub routers. The GPI & Tally Interface can be used with multiple interfaces to increase the number of inputs and outputs.

Product Features

Displays Tallies for Video Signals
Indicates On-air Status
For ATEM Switchers / Videohub Routers
8 Contact Closure Inputs & Outputs
Connects with Multiple Interfaces

Specifications

Contact Closure	25 pin D-type connector providing 8 up to isolated inputs and 8 relay contact closure outputs
Inputs	Optical isolators triggered by connection to ground (maximum 5 V @ 14 mA)
Outputs	Mechanical relay contact closure to ground (maximum 30 V @ 1 A)
Ethernet	10 / 100 BaseT with loop through for connecting to other Ethernet enabled equipment
Computer Interface	1 x USB 2.0 high speed interface for configuration and firmware updates
Software Included	Configured via ATEM Switcher utility
Firmware Upgrade	Firmware built into software driver. Loaded at system startup or via updater software
Operating System	Microsoft Windows 7 and Apple Mac OS X
Power Supply	12 V power supply included with international socket adapters for all countries
