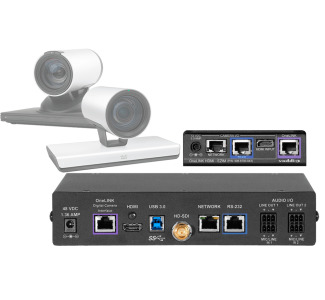

Cisco Codec Kit for OneLINK Bridge to Cisco Cameras

Product Description

For Cisco Telepresence SX20, SX80 or C-Series CodecsMore Flexibility for Room Design and InstallationOneLINK Codec Kits provide more freedom of choice for camera selection, equipment placement and cloud conferencing software.Tailored for Cisco Codec Systems, Vaddio OneLINK Codec Kits enhance capabilities of traditional codecs, while appealing to end users who want to enjoy the benefits of cloud conferencing. /gt;Benefits include:More flexibility in camera and/or codec placement no longer dependent on location of codecHDBaseT interface extends power, video and control up to 328 feet/100 meters Cisco systems can now go into larger roomsDeliver uncompressed, high definition cloud conferencing with USB 3.0 available on the OneLINK Bridge, removing restrictions of traditional codecsConnect to any cloud conferencing software including Google Hangouts, Skype for Business, WebEx, Zoom and othersPlug and play usability for BYOD conferencing environmentsIntuitive browser-based user interface for camera control and remote management

• Simple, clutter-free camera extension with HDBaseT technology
• Power, control and video up to 328ft (100m) over a single Cat-5e/6 cable
• Bridges audio and video for easy soft-client conferencing
• Simultaneous HDMI, USB 3.0, and HD-SDI outputs
• Configurable audio matrix with AEC
• Up to 1080p/60 resolution available over uncompressed USB
• Includes:
• OneLINK Bridge Interface
• OneLINK HDMI EZIM with mounting screws
• Thin Profile Wall Mount (black) with mounting hardware
• Quick-Start Guide
• 48V power supply with AC cord set(s)
• 4 qty 3-position phoenix-style connectors
• 1' (0.3m) cat-5 cable, black
• 3' (0.9m) cat-5 cable, black
• 1' (0.3m) directional cat-5 cable for Cisco PrecisionHD
• 3' (0.3m) directional cat-5 cable for Cisco SX20
• 1' (0.3m) HDMI cable
• 3' (0.9m) HDMI cable
• 1' (0.3m) EIAJ-04 to 5.5x2.1 power cable for camera
• 6' (1.8m) USB 3.0 cable, type A to B
• EZCamera RS-232 Control Adapter
• EZCamera RS-232 Control Adapter 998-1002-232 for Cisco codec serial 9-pin ports
