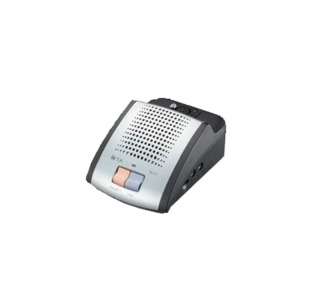

Conference System Delegate Unit

Product Description

Conference system delegate unit provides 3.5mm unbalanced headphone mini jack and 3.5mm unbalanced record output mini jack with volume control, 32 ohms headphone and 10 kiloohms, 20dB recording. It uses TS-773 or TS-774 gooseneck microphone. Controls of delegate unit shall include talk key which shall provide microphone and speaker on-off control. Controls of delegate unit shall also include priority key which provides microphone and speaker on-off control, other microphone off and single-tone chime activation. It provides contact closure output (24Vdc, maximum 50mA) when microphone is active. It also provides built-in speaker (130 ohms, 200mW). It shall be powered by TS-770 central unit supplying 35Vdc, under 30mA line. Case of chairman unit shall be constructed of ABS resin with black finishing. Panel of chairman unit shall be constructed of ABS resin with gray metallic paint and 50% glossy finishing.

• Uses TS-773 or TS-774 gooseneck microphone
• Five years warranty
• Built-in speaker
• Push to talk control
• Can be used for camera call-up, tally or other devices
• Contact closure output when microphone is active
• Microphone, speaker on-off control by speech switch
• 3.5mm headphone and record output with volume control
