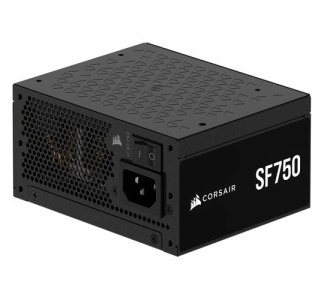

Corsair SF RPS0205 750W Power Supply

Name: Corsair SF RPS0205 750W Power Supply
Brand: Corsair
Price: 218.99 USD
Availability: InStock

Print Corsair SF RPS0205 750W Power Supply page

CAMCOR ITEM NO. 208500571 | MFG. PART NO. CP-9020284-NA

Product Highlights
SMALL AND MIGHTYDon't let the size fool you - this SFX power supply packs 80 PLUS Platinum-rated power, perfect for the most power-dense small form-factor PCs.50°C CONTINUOUS OPERATING ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Customers Also Viewed |Reviews

Product Description

SMALL AND MIGHTY

Don't let the size fool you - this SFX power supply packs 80 PLUS Platinum-rated power, perfect for the most power-dense small form-factor PCs.

50°C CONTINUOUS OPERATING TEMPERATURE

Ensures reliable power for your SFF PC, even under high-stress conditions.

105°C-RATED CAPACITORS

Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.

ATX 3.1 CERTIFIED

The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, SF Series PSUs are formally certified for ATX 3.1 compliance.

PCIe 5.1 12VHPWR GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.

QUIET OPERATION WITH ZERO RPM MODE

A fluid dynamic bearing cooling fan keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.

FULLY MODULAR TYPE 5 MICRO-FIT CONNECTORS

Connect only what you need, with flexible cabling to take up less space for tidy cable management in small cases.

WORLD-CLASS SUPPORT

Our award-winning service means you can enjoy your gear worry-free.

Specifications

General Information
Manufacturer	Corsair
Brand Name	Corsair
Product Series	SF
Product Model	RPS0205
Product Type	Power Supply
Technical Information
Specification Compliance	ATX 3.1 ATX12V v3.1
Number of Fans	1
Fan Diameter	92 mm
Modular	Yes
Features	Compact
Reliability
MTBF	100000 Hour
Power Description
Number of +12V Rails	1
Input Voltage	120 V AC 230 V AC
Output Voltage	3.3 V DC 5 V DC 12 V DC 5 V SB
Output Voltage Detail	3.3 V DC @ 20 A 5 V DC @ 20 A 12 V DC @ 62.5 A 5 V SB @ 3 A
Output Power	750 W
Input Frequency	63Hz
Interfaces/Ports
Number of SATA Power Connectors	3
PCI Express Connector	Yes
Number of (6+2 pin) PCI Express Power Connectors	2
Number of (4+4 pin) CPU Power Connectors	2
Physical Characteristics
Color Family	Black
Product Color	Black
Form Factor	SFX
Miscellaneous
Energy Efficiency Certification	80 Plus Platinum
Warranty
Limited Warranty	7 Year
