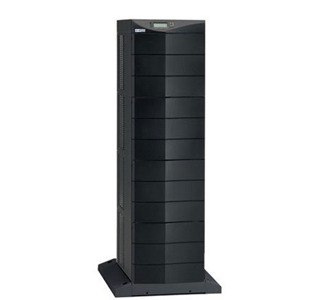

Eaton 9170+ Rackmount UPS 12 to18 kVA UPS

Print Eaton 9170+ Rackmount UPS 12 to18 kVA UPS pageRequest Bulk Pricing CAMCOR ITEM NO. 224000046 | MFG. PART NO. PW12S12K-PD
Eaton 9170+ Rackmount UPS 12 to18 kVA UPS
Eaton 9170+ Rackmount UPS 12 to18 kVA UPS
Zoom
Close WindowZoom
Alternate View

MSRP: 17412.00
Savings: $5357.01

Your Price: $12054.99
Quantity

Usually ships in 1-3 business days

Product Highlights
With a scaleable, modular and redundant design, the Powerware 9170+ Rackmount UPS provides advanced backup power and power quality management and offers the highest level of power protection and ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

With a scaleable, modular and redundant design, the Powerware 9170+ Rackmount UPS provides advanced backup power and power quality management and offers the highest level of power protection and power quality of any Rackmount UPS power supply in the 3-18 kVA range.



Back to Top

Specifications

General Information
ManufacturerEaton Corporation
Brand NameEaton
Product TypeOnline UPS
Technical Information
Plug/Connector TypeHardwired
Receptacles
  • 3 x NEMA L14-30R
  • 3 x NEMA L6-30R
  • 12 x NEMA 5-20R
    • Power Description
    Load Capacity12 kVA/8.40 kW
    Input Voltage
  • 110 V AC
  • 220 V AC
    • Input Voltage Range
  • 120 V AC
  • 208 V AC
  • 240 V AC
    • Output Voltage
  • 120 V AC
  • 208 V AC
  • 240 V AC
    • Frequency
  • 50 Hz
  • 60 Hz
    • Waveform TypeSine Wave
    Scalability
    Power Range12 kVA to 18 kVA /
    Modules
  • 4 x Power Module
  • 8 x Battery Module
    • Management
    Network ManagementOptional
    Alarm
  • Low Battery
  • High Battery
  • Low AC Output
  • High AC Output
  • High AC Input
  • Output Overload
  • Overload Shutdown
  • High Heatsink Temperature
  • Emergency Power Off
  • Module Failure
  • Excessive Transfer
  • Precharge Failure
  • Incompatible Module
  • Fan Failure
  • Low Runtime
  • Check Memory
  • Check Battery Open Cell
  • Check Battery Weak Battery
  • Low Redundancy Insufficient Battery
  • Low Redundancy Insufficient Module
  • Check Battery
  • Phase Error
    • Bypass SwitchAutomatic
    Emergency Power OFFYes
    Battery ManagementAdvanced Battery Management
    Controls/Indicators
    Control Panel
    • LCD Status Screen
    Status Indicators
    • Battery Test Failed
    Interfaces/Ports
    Modular Slots2 x Communications Slot
    Battery Information
    BatteriesMaintenance-free Sealed Lead Acid Hot-swappable
    Backup/Run Time
  • 0.13 Hour 8.40 kW Full Load
  • 0.40 Hour 4.20 kW Half Load
    • Battery Recharge Time<4 Hour Standard
    Environmental Conditions
    Temperature
  • 32°F (0°C) to 104°F (40°C) Operating
  • -4°F (-20°C) to 104°F (40°C) Storage
    • Humidity50 to 90% Non-condensing Relative Humidity
    Altitude
  • 10000 ft Operating
  • 40000 ft Non-operating
    • Sound Emission50 dB(A)
    Cooling TypeInternal Fans
    Physical Characteristics
    Form FactorRack-mountable
    Miscellaneous
    Additional Information
    • Eliminates single point-of-failure with N+X power and logic redundancy
    • Grows with changing IT environments by incorporating scalable design of 3 kVA power modules and batteries
    Certifications & Standards
    • UL
    • CUL
    • FCC class A
    • IEEE/ANSI C62.41
    Warranty
    Limited Warranty2 Year
