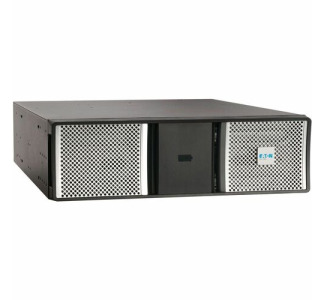

Eaton 9PXEBM240RTG2 Battery Unit

Name: Eaton 9PXEBM240RTG2 Battery Unit
Brand: Eaton
Price: 2081.99 USD
Availability: InStock

Print Eaton 9PXEBM240RTG2 Battery Unit page

CAMCOR ITEM NO. 224009240 | MFG. PART NO. 9PXEBM240RTG2

Product Highlights
Backup Battery Module Gives Your Compatible Eaton UPS System Extended RuntimeThe 9PXEBM240RTG2 offers extended battery runtime when used in conjunction with Eaton's 9PX8KG2, 9PX8KTF5G2, 9PX11KG2, ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Customers Also Viewed |Reviews

Product Description

Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime

The 9PXEBM240RTG2 offers extended battery runtime when used in conjunction with Eaton's 9PX8KG2, 9PX8KTF5G2, 9PX11KG2, 9PX11KTF11G2, 9PX11KTF11MG2, and 9PX11KTF5G2 9PX UPS systems. It can also be daisy-chained for a maximum of 12 auto-detected battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.

Supports 3U Rack or Tower Installation

This backup battery pack's multi-use form factor supports mounting in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also adapt it for tower installation using the included support stands. For installation in 2-post racks, one RK2PC mounting kit (sold separately) is required for each UPS, EBM, PPDM or transformer.

Specifications

General Information
Manufacturer	Eaton Corporation
Brand Name	Eaton
Product Model	9PXEBM240RTG2
Product Type	Battery Unit
Technical Information
Battery Characteristics	Valve-regulated/User Replaceable
Battery Chemistry	Lead Acid
Hot Swappable	Yes
Output Voltage	240 V DC
Battery Size	Proprietary Battery Size
Environmental Conditions
Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Physical Characteristics
Height	5.1"
Width	17.3"
Depth	26.4"
Weight (Approximate)	143 lb
Miscellaneous
Package Contents	9PXEBM240RTG2 Battery Unit External Battery Cable, 1 ft. (0.3 m) Tower Support Stands Rack-mounting Hardware Quick Start Guide
Compatibility	Eaton's 9PX G2 UPS Systems: 9PX8KG2 9PX8KTF5G2 9PX11KG2 9PX11KTF11G2 9PX11KTF11MG2 9PX11KTF5G2
Certifications & Standards	NOM (Mexico) cUL Listed EN 62040-2 CE (Europe) FCC (USA) FCC Part 15 Class A (USA)
Energy Star	Yes
Country of Origin	Philippines
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	3 Year
