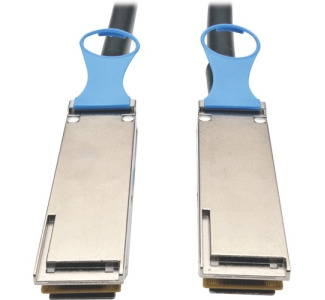

Eaton Tripp Lite Series QSFP28 to QSFP28 100GbE Passive DAC Cable (M/M), QSFP-100G-CU1M Compatible, 1M (3.28 ft.)

Print Eaton Tripp Lite Series QSFP28 to QSFP28 100GbE Passive DAC Cable (M/M), QSFP-100G-CU1M Compatible, 1M (3.28 ft.) pageRequest Bulk Pricing CAMCOR ITEM NO. 224011963 | MFG. PART NO. N282-01M-28-BK
Eaton Tripp Lite Series QSFP28 to QSFP28 100GbE Passive DAC Cable (M/M), QSFP-100G-CU1M Compatible, 1M (3.28 ft.)
Eaton Tripp Lite Series QSFP28 to QSFP28 100GbE Passive DAC Cable (M/M), QSFP-100G-CU1M Compatible, 1M (3.28 ft.)
Zoom
Close WindowZoom
Alternate View

MSRP: 672.41
Savings: $361.62

Your Price: $310.79
Quantity

Usually ships in 1-3 business days
Free ShippingFREE
SHIPPING (?)

This item has Free Shipping!

Camcor, Inc. uses parcel carriers including UPS and FedEx. UPS will NOT deliver to PO Boxes (can only be shipped via US Postal Service). For residential and business orders shipped by motor freight (truck) common carrier, normal delivery is curbside or loading dock (Dock to Dock Delivery) and NOT inside the home or business.

For any special request such as "in home", "inside building", "up elevators", "up stairs", "set up", "lift gate truck", the freight company will assess additional charges. Customers are responsible for any such charges.

Product Highlights
The N282-01M-28-BK QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable provides next-generation performance by combining four 28 Gbps SFP channels into one high-density cable. It's ideal for ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

The N282-01M-28-BK QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable provides next-generation performance by combining four 28 Gbps SFP channels into one high-density cable. It's ideal for connecting active network equipment in data centers, high-end servers and enterprise wiring closets.

This one-meter copper cable integrates a 100G Ethernet-optimized (100 GbE) 38-position "board-as-connector" design with zinc die-cast male QSFP+ connectors for superior EMI resistance, minimal insertion loss and low crosstalk for better performance. Ergonomic pull-tab ejectors make connecting to equipment a quick, easy task. Eight-pair wire technology is optimized for bandwidth-intense applications, including 100-Gigabit Ethernet (100GBASE-CR4), 128G Fibre Channel and EDR 4x InfiniBand.

Flexible 26 AWG conductors maintain a smooth high-frequency response. The N282-01M-28-BK undergoes a rigorous assembly and testing procedure aimed at eliminating unnecessary signal loss. It's fully compliant with the MSA (Multi-Source Agreement) SFF-8665 architecture for guaranteed compatibility with all QSFP and QSFP+ ports, as well as RoHS and IEEE 802.3bj.

More from the Manufacturer



Back to Top

Specifications

General Information
ManufacturerEaton Corporation
Brand NameTripp Lite series
Product ModelN282-01M-28-BK
Product TypeNetwork Cable
Technical Information
Cable TypeInfiniBand
Cable Length3.30 ft
Connector Type on First EndQSFP+ Network - Male
Connector on First End Details1 x QSFP+ Network - Male
Connector Type on Second EndQSFP+ Network - Male
Connector on Second End Details1 x QSFP+ Network - Male
Device SupportedNetwork Device
American Wire Gauge26 AWG
Data Transfer Rate100 Gbit/s
Features
  • Flexible
  • Crosstalk Protection
  • Passive
    • Physical Characteristics
    Color FamilyBlack
    Product ColorBlack
    Shipping Height0.50"
    Shipping Width9.90"
    Shipping Weight (Approximate)8 oz
    Miscellaneous
    Environmentally FriendlyYes
    Environmental Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Restriction of Hazardous Substances (RoHS)
    • Country of OriginChina
    Warranty
    Limited WarrantyLifetime
