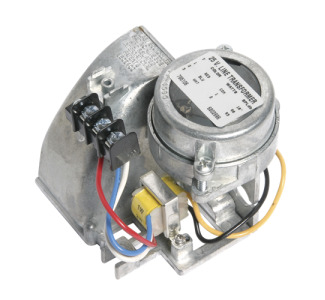

Environment-resistant Voice/Tone Compression Driver Loudspeaker with 25V/15W Transformer

Print Environment-resistant Voice/Tone Compression Driver Loudspeaker with 25V/15W Transformer pageRequest Bulk Pricing CAMCOR ITEM NO. 524902001 | MFG. PART NO. VTB-4
Environment-resistant Voice/Tone Compression Driver Loudspeaker with 25V/15W Transformer
Environment-resistant Voice/Tone Compression Driver Loudspeaker with 25V/15W Transformer
Zoom
Close WindowZoom
Alternate View

MSRP: 152.99
Savings: $29.00

Your Price: $123.99
Quantity

Usually ships in 1-3 business days

Product Highlights
Atlas Sound VTB series models are environment-resistant loudspeakers designed for intercom communication. VTB Models feature an integral exponential horn to provide reliable sound distribution and ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

Atlas Sound VTB series models are environment-resistant loudspeakers designed for intercom communication. VTB Models feature an integral exponential horn to provide reliable sound distribution and optimum intelligibility for the reproduction of voice and/or electric tone signals. Units have a frequency response of 600Hz to 55kHz, and are offered in six models to meet application requirements. Series Models VTB-1 and VTB-2 are 8 and 4 ohm units, respectively. Models VTB-3 through VTB-6 are equipped with a built-in transformer. Termination is via 6" color coded leads. Units are of die-cast zinc construction with a water-sealed driver that will withstand moisture, corrosion, vibration, vermin, and vandalism. Models are available with a selection of multi-tap transformers and are designed to mount a variety of standard or custom housings and face plates to meet installation and application requirements. VTB Series units provide years of trouble-free service in stationary or mobile applications both indoors or outdoors.

  • 25V/15W transformer
  • Communications, intercom, electronic alarm, and monitoring systems
  • High efficiency compression driver for optimum audio intelligibility
  • Metal die-cast construction with integral exponential horn
  • Operates within a temperature range of -30° F to 150° F
  • Patented voice/tone loudspeaker for custom application in high efficiency industrial
  • UL certified, safety listed to UL1480
  • Selection of five models 2 or 15 Watts, 4 or 8 Ohms, 25V or 70.7V transformers
  • Water/moisture, corrosion, dust, vibration, and vermin-resistant

Specifications

Specifications

25V Taps2, 4, 8, 15 Watt
Maximum Frequency Response (Bandwidth)5.5 kHz
Maximum Frequency Response (Bandwidth)5500.0000 Hz
Minimum Frequency Response (Bandwidth)0.6000 kHz
Minimum Frequency Response (Bandwidth)600 Hz
Operating Temperature (Maximum)150 F
Operating Temperature (Maximum)65.5556 C
Operating Temperature (Minimum)-30 F
Operating Temperature (Minimum)-34.4444 C
Sensitivity96.9 dB

Product Dimensions

Depth3.1890 in
Height3.6890 in
Shipping Weight2.40 lbs
Width3.6880 in
