CAMCOR ITEM NO. 105700080 | MFG. PART NO. GTB-HD4K2K-444-BLK
Product Highlights
Route four Ultra Hi-Def sources to four Ultra HD displays with FST, 3DTV, and 4K x 2K Ultra High-Definition support The GefenToolBox 4x4 Matrix for HDMI 4Kx2K is a compact and lightweight alternative ... More
California Residents:Route four Ultra Hi-Def sources to four Ultra HD displays with FST, 3DTV, and 4K x 2K Ultra High-Definition support

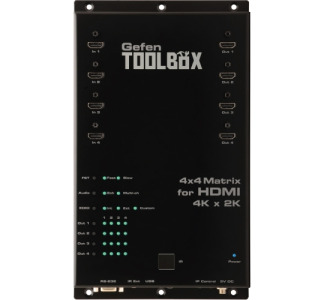

The GefenToolBox 4x4 Matrix for HDMI 4Kx2K is a compact and lightweight alternative to rack-mounted matrixes. It allows up to four Ultra High Definition 4K x 2K or 1080p Full HD sources to be routed to up to four Ultra HD displays. This product supports resolutions up to 4K x 2K (3840 x 2160@30Hz). Deep Color, 3DTV pass-through, and lossless audio formats such as LPCM 7.1, Dolby® TrueHD, and DTS-HD® Master Audio™ are also supported. Each Hi-Def source can be routed to any of the connected displays using the front panel push-button controls, the included IR remote, RS-232 serial control interface, or through IP, using Telnet, UDP, and the built-in web server interface. LED indicators on the top panel display the current routing status, FST mode, audio configuration, and EDID settings.
| General Information | |
|---|---|
| Manufacturer | Gefen, Inc |
| Brand Name | Gefen |
| Packaged Quantity | 1 |
| Product Type | Audio/Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 4 |
| Device Supported | |
| Number of Displays Supported | 4 |
| Video | |
| Maximum Video Resolution | 3840 × 2160 |
| Maximum Video Bandwidth | 300 MHz |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Serial Port | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 1 |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 4 |
| Number of HDMI Outputs | 4 |
| Power Description | |
| Input Voltage | 5 V DC |
| Power Consumption | 13 W |
| Physical Characteristics | |
| Color | Black |
| Height | 11.9" |
| Width | 6.9" |
| Depth | 1" |
| Miscellaneous | |
| Package Contents |
|
| |
|
|
|
|
