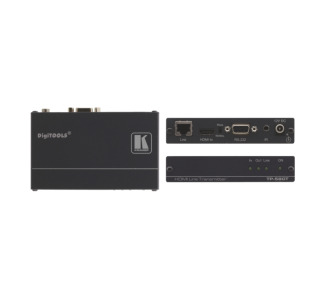

HDMI, Bidirectional RS-232 IR over HDBaseT Twisted Pair Transmitter
CAMCOR ITEM NO. 384054456 | MFG. PART NO. TP-580T
Product Highlights
The TP-580T is a high-performance, HDBaseT twisted pair transmitter for HDMI, bidirectional RS-232 and IR signals. The TP-580T inputs HDMI, RS-232, and IR signals and converts them into an HDBaseT ... More
Is This Item Right For Me? - Ask Our Experts
California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.
The TP-580T is a high-performance, HDBaseT twisted pair transmitter for HDMI, bidirectional RS-232 and IR signals. The TP-580T inputs HDMI, RS-232, and IR signals and converts them into an HDBaseT twisted pair signal that it transmits to a TP-580R receiver.
Max. Data Rate - 3.4Gbps
HDTV Compatible
HDCP Compliance
HDBaseT™ Technology
HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC
3D Pass-Through
EDID PassThru - Passes EDID signals between the source and display
2K & 4K Support
Bidirectional RS-232 & IR Interface - Commands and data can flow in both directions via the RS?232 interface, allowing status requests and remote control of the destination unit
System Range - Up to 70m (230ft)
Cable - For optimum range and performance use, use Kramer's BC-DGKat524, BC-DGKat623 and BC-DGKat7a23 cables
Indicators - Status LEDs for input, output, link and power
Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T universal rack adapter
