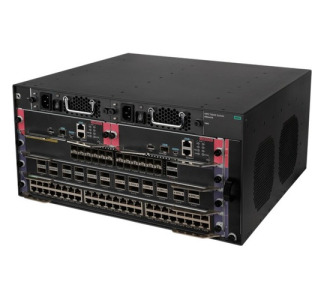

HPE FlexNetwork 7503X Ethernet Switch 3 Slots Chassis

Print HPE FlexNetwork 7503X Ethernet Switch 3 Slots Chassis pageRequest Bulk Pricing CAMCOR ITEM NO. 350082176 | MFG. PART NO. R8N49A
HPE FlexNetwork 7503X Ethernet Switch 3 Slots Chassis
HPE FlexNetwork 7503X Ethernet Switch 3 Slots Chassis
Zoom
Close WindowZoom
Alternate View

We will gladly send you a quote for this item. Please click the link below to fill out the form and receive the quote via FAX or e-mail.

Get Quote

Become a registered user and view prices on all products

Usually ships in 1-3 business days
Free ShippingQualifies for
FREE SHIPPING (?)

This item Qualifies towards Free Shipping!

Items marked with this Freight Saver symbol have FREE shipping (via UPS Ground Service within the Continental US) when $ 79.00 or more of designated Freight Saver items are purchased on the same internet order.

Camcor, Inc. uses parcel carriers including UPS and FedEx. UPS will NOT deliver to PO Boxes (can only be shipped via US Postal Service). For residential and business orders shipped by motor freight (truck) common carrier, normal delivery is curbside or loading dock (Dock to Dock Delivery) and NOT inside the home or business.

For any special request such as "in home", "inside building", "up elevators", "up stairs", "set up", "lift gate truck", the freight company will assess additional charges. Customers are responsible for any such charges.

Product Highlights
HP Logo The HPE FlexNetwork 7500X Switch Series is a versatile, multi-layered, high performance, modular switch for enterprise LAN edge, aggregation, and core layers.The 7500X combination of Chassis, MPUs ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

The HPE FlexNetwork 7500X Switch Series is a versatile, multi-layered, high performance, modular switch for enterprise LAN edge, aggregation, and core layers.

The 7500X combination of Chassis, MPUs and LPUs offers 1/10/40/100GbE connectivity, with PoE/PoE+, meets existing and future requirements, IoT, etc. Higher switching bandwidth (480Gbps/slot) and L2/L3 routing services dramatically improve performance and increases support for mission-critical environments.

Customers can take advantage of Virtual Extensible LAN (VXLAN) and Ethernet VPN (BGP EVPN) to provide greater scalability and better utilization of available network paths and leverage HPE Intelligent Resilient Fabric (IRF) to enable flatter, more agile and highly available networks.

HPE Intelligent Management Center (IMC) provides a single view of the entire network. Support for IPv4/IPv6, and MPLS/VPLS features provide investment protection and an easy transition from IPv4 to IPv6 networks and ease of maintenance is assured with Graceful Insertion and Removal (GIR) and In Service Software Update (ISSU).



Specifications

General Information
ManufacturerHewlett Packard Enterprise
Brand NameHPE
Product LineFlexNetwork
Product Series7500X
Product Model7503X
Product TypeSwitch Chassis
Interfaces/Ports
ModularYes
Port/Expansion Slot Details12 x 100Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported
  • Optical Fiber
  • Twisted Pair
  • Ethernet Technology100 Gigabit Ethernet
    Network Technology100GBase-X
    I/O Expansions
    Number of Total Expansion Slots3
    Expansion Slot Type
  • I/O Module
  • Main Processing Unit (MPU)
  • Network & Communication
    Layer Supported2
    Networking Standards
  • IEEE 802.3af
  • IEEE 802.3x
  • IEEE 802.3at
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3ac
  • IEEE 802.3ad
  • IEEE 802.3ae
  • IEEE 802.3ah
  • IEEE 802.3ba
  • IEEE 802.3u
  • IEEE 802.3z
  • IEEE 802.1ab
  • IEEE 802.1Q
  • IEEE 802.1D
  • IEEE 802.1w
  • IEEE 802.1s
  • IEEE 802.1ad
  • IEEE 802.1p
  • IEEE 802.1x
  • IEEE 802.1ae
  • IEEE 802.1ag
  • Management & Protocols
    ManageableYes
    Power Description
    PoE (RJ-45) PortYes
    Input Voltage
  • 120 V AC
  • 230 V AC
  • Frequency
  • 50 Hz
  • 60 Hz
  • Power SourcePower Supply
    Number of Power Supplies Supported2
    Power Consumption650 W
    Physical Characteristics
    Product ColorBlack
    Product MaterialMetal
    Compatible Rack Unit5U
    Form Factor
  • Rack-mountable
  • Cabinet Mount
  • Surface Mount
  • Standalone
  • Enclosure
  • Height8.5"
    Width17.2"
    Depth16.5"
