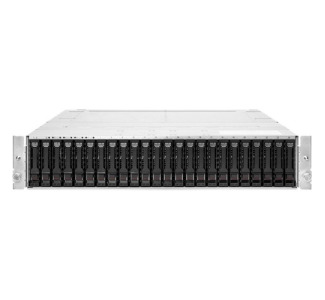

HPE J2000 Dual IOM 2x100GbE NVMe-oF SFF TAA-compliant JBOF Storage
CAMCOR ITEM NO. 350064334 | MFG. PART NO. R4T20A
Product Highlights
Key Features High Performance with Very Low Latency HPE Flash Enclosures are an end-to-end NVMe solution with a non-blocking architecture in a PCI Gen4 ready chassis. Up to six 100GbE NVMe-oF ports ... More
Is This Item Right For Me? - Ask Our Experts
California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.
Product Description
Key Features
High Performance with Very Low Latency
HPE Flash Enclosures are an end-to-end NVMe solution with a non-blocking architecture in a PCI Gen4 ready chassis.
Up to six 100GbE NVMe-oF ports providing the capability of up to 16.8M IOPs and 69 GB/s performance using 4K random reads.
RoCE v2 connectivity adds only 4.85us of latency compared to internal PCIe SSDs.
Remote Direct Memory Access (RDMA) reduces server CPU resources needed for applications to access data.
Network Connected Solution delivers Shared Efficiencies
The HPE J2000 Flash Enclosure improves the utilization of flash in the environment and facilitates Data Sharing (via NVMe Namespaces).
Increase the availability of data with an HA design and NVMe-oF network connectivity.
Deliver better Total Cost of Ownership (TCO) when compared to distributed and isolated internal SSDs.
Reduce rack space and overall power requirements.
High Available (HA) Architecture
The HPE J2000 Flash Enclosure features hot swap, dual IO modules in an active-active configuration with hot swap, redundant power, and cooling.
Each IO module has its own management interface while providing a single view of the entire system.
Dual port SSDs allow access to data from either or both IO modules for performance and availability.
Multipath support provides applications with improved fault tolerance.
Specifications
General Information
Manufacturer Hewlett Packard Enterprise
Brand Name HPE
Product Model J2000
Product Type NAS Storage System
Storage
Number of Solid State Drive Supported 24
Number of Solid State Drive Installed 0
Total Solid State Drive Capacity Supported 307 TB
Network & Communication
Ethernet Technology 100 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays 24
Number of 2.5" Bays 24
Number of Total Expansion Slots 2
Expansion Slot Type QSFP28
Controllers
Number of Controllers 1
Controller Type NVMe
Power Description
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 1600 W
Redundant Power Supply Yes
Physical Characteristics
Height 3.4"
Width 17.9"
Depth 28.4"
Form Factor Rack-mountable
Rack Height 2U
Weight (Approximate) 56.22 lb
Warranty
Limited Warranty 3 Year
