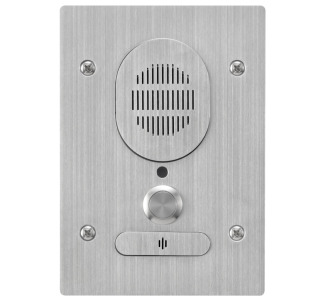

IP65-rated Outdoor Station

CAMCOR ITEM NO. 685910772 | MFG. PART NO. N-8640DS

Quantity

Usually ships in 1-3 business days

Qualifies for
FREE SHIPPING ^(?)

This item Qualifies towards Free Shipping!

Items marked with this Freight Saver symbol have FREE shipping (via UPS Ground Service within the Continental US) when $ 79.00 or more of designated Freight Saver items are purchased on the same internet order.

Camcor, Inc. uses parcel carriers including UPS and FedEx. UPS will NOT deliver to PO Boxes (can only be shipped via US Postal Service). For residential and business orders shipped by motor freight (truck) common carrier, normal delivery is curbside or loading dock (Dock to Dock Delivery) and NOT inside the home or business.

For any special request such as "in home", "inside building", "up elevators", "up stairs", "set up", "lift gate truck", the freight company will assess additional charges. Customers are responsible for any such charges.

Product Highlights
IP door station employing packet audio technology. Connecting the N-8640DS to an IP network (LAN/WAN) permits hands-free conversation of high sound quality to be made between N-8640DS and the ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Customers Also Viewed |Reviews

Product Description

IP door station employing packet audio technology. Connecting the N-8640DS to an IP network (LAN/WAN) permits hands-free conversation of high sound quality to be made between N-8640DS and the intercom station connected to IP network exchange or between N-8640DS and IP multifunctional master station. Can be used in conjunction with multi-interface units through network. Equipped with single channel of control input, 5 channels of control outputs and speaker output, thereby enabling connections of external equipment such as sensor, indicator and external speaker.

Chemical resistant for use in industrial/harsh environments
4 contact outputs/one input for use with access controls systems and remote dialers
External speaker connection 0.5W at 8 ohms
Allows full-duplex conversation with master stations

Specifications

Operating Temperature (Maximum)	122.0000 F
Operating Temperature (Maximum)	50 C
Operating Temperature (Minimum)	-10 C
Operating Temperature (Minimum)	14.0000 F
Audio delay time	80/320 ms
Maximum Power Consumption	5 W
Operating Humidity	Under 90% RH
Power Source	12 VDC
