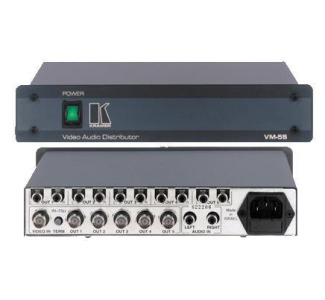

Kramer 1:5 Video Audio Distribution Amplifier VM-5S

Name: Kramer 1:5 Video Audio Distribution Amplifier VM-5S
Brand: Kramer Electronics
Price: 292.00 USD
Availability: InStock

Print Kramer 1:5 Video Audio Distribution Amplifier VM-5S page

CAMCOR ITEM NO. KRAVM5S | MFG. PART NO. VM-5S

Kramer 1:5 Video Audio Distribution Amplifier VM-5S

Product Highlights
The Kramer VM-5S is an exceptionally high performance 1:5 distribution amplifier for video and audio stereo signals. It accepts one input and distributes the signal to five identical outputs using ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Customers Also Viewed |Reviews

Product Description

The Kramer VM-5S is an exceptionally high performance 1:5 distribution amplifier for video and audio stereo signals. It accepts one input and distributes the signal to five identical outputs using BNC connectors for video and RCA connectors for audio. The VM-5S is typically used for composite video sources such as VCRs, cameras, etc., but video bandwidth exceeding 350MHz also allows it to be used for high-resolution video signals, SDI (serial digital) video, and other specialized signals. The looping option can be used to create larger systems. The dual RCA audio section can be easily adapted to handle balanced mono audio signals. The VM-5S is rugged, dependable, and is housed in a convenient half-rack sized enclosure for desktop use, but can also be rack mounted using the RK-80 kit, which holds two units in one vertical space of a standard 19 rack.

Typical Applications

Any professional A/V system requiring high quality signal distribution.

Duplication facilities.

Schools, retail, sports bars, other point-of-sale and CCTV applications.

Studio RGB/YUV distribution using multiple VM-5Ss in parallel.

Specifications

Input	1 video AC/DC coupled (internal jumper), looping 1Vpp/75 Ohm on BNC connectors with rear termination switch. 1 audio stereo/mono balanced, up to 21V/50 k Ohm on RCA connectors.
Outputs	5 video, 1 Vpp/75 Ohm on BNC connectors. 5 audio stereo/balanced mono, up to 21V/220 Ohm on RCA connectors.
Max. Video Output	1.7 Vpp.
Video Bandwidth (-3db)	340 MHz.
Audio Bandwidth (-3db)	20 kHz.
Diff. Gain	0.05%.
Diff. Phase	0.1 Deg.
K-factor	0.05%.
Video S/n Ratio	75dB.
Audio S/n	82dB @ 1V.
Coupling	DC/AC internally selectable.
Audio Thd	0.009%.
Sdi Effective Range	Up to 70 meters.
Power Source	230VAC, 50/60 Hz, (115V U.S.A.) 3.5 VA.
Dimensions	22cm x 18cm x 4.5cm (8.7" x 7" x 1.8", W, D, H., half 19").
Weight	1.4 kg (3.3 lbs.) approx.
Accessories	Power cord
Options	RK-80 rack kit holds two units in one vertical rack space
