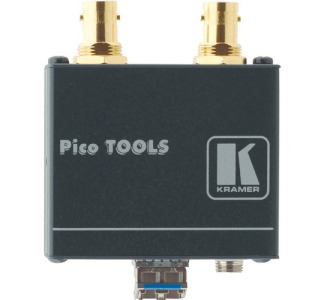

Kramer 2x3G SDI Transmitter over Ultra-Reach SM Fiber

Name: Kramer 2x3G SDI Transmitter over Ultra-Reach SM Fiber
Brand: Kramer Electronics
Price: 542.40 USD
Availability: InStock

Print Kramer 2x3G SDI Transmitter over Ultra-Reach SM Fiber page

CAMCOR ITEM NO. 384051634 | MFG. PART NO. 690T

Kramer 2x3G SDI Transmitter over Ultra-Reach SM Fiber

Product Highlights
The 690T is a high-performance fiber optic transmitter for SDI video signals up to 3G HD-SDI. The 690T converts two 3G HD-SDI signals to single-mode fiber optic and the 690R receiver converts them ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Customers Also Viewed |Reviews

Product Description

The 690T is a high-performance fiber optic transmitter for SDI video signals up to 3G HD-SDI. The 690T converts two 3G HD-SDI signals to single-mode fiber optic and the 690R receiver converts them back to the two original SDI formats. The unit is compatible with the fiber optic matrix VS-88FO.

Max. Data Rate - 3Gbps.
Inputs - 2 SDI on BNC connectors.
Outputs - 2 single-mode fiber optic on LC connectors.
HDTV Compatible.
Multi-Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M), 3G HD-SDI (SMPTE 424M).
Laser Standards Compliance - IEC 60825-1, FDA 21CFR1040; Laser Class 1: Safety of laser products.
Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances on the coax cable, 200m (HD-SDI) & 100m (3G HD-SDI).
System Range - Up to 10km (6.2mi).

Applications

Home theater, presentation and multimedia applications.
Long range multimedia distribution for cinemas, stores, and entertainment centers.
Video production and broadcast facilities.
Retail stores and other point-of-sale systems.
Digital signage.

Specifications

General Information
Manufacturer	Kramer Electronics LTD
Brand Name	Kramer
Product Line	Pico TOOLS
Product Model	690T
Product Type	Video Extender Transmitter
Technical Information
Connectivity Technology	Wired
Number of Input Devices Supported	2
Maximum Operating Distance	32808.40 ft
Media & Performance
Media Type Supported	Optical Fiber
Physical Characteristics
Transmitter Height	0.96"
Transmitter Width	2.45"
Transmitter Depth	2.04"
Transmitter Weight (Approximate)	3.53 oz
Miscellaneous
Package Contents	2x3G SDI Transmitter over Ultra-Reach SM Fiber Power Supply
Warranty
Limited Warranty	7 Year
