Kramer 4K60 4:2:0 HDMI Audio Embedder/De-Embedder

Product Description

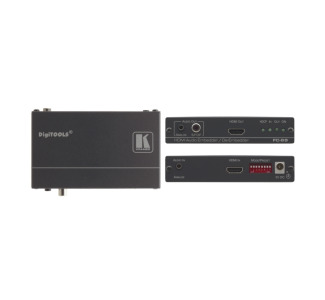

FC-69 is a high-performance 4K@60Hz (4:2:0), 4Kx2K HDMI audio embedder and de-embedder. The unit can embed analog audio to the HDMI output or de-embed audio from the HDMI input or from the HDMI output Audio Return Channel to S/PDIF and unbalanced stereo audio outputs simultaneously.

• Max. Resolution - 4K@60Hz (4:2:0), 4Kx2K.
• Max. Data Rate - 8.91Gbps (2.97Gbps per data channel).
• HDTV Compatible.
• HDCP Compliant.
• HDMI Support - ARC, 7.1 PCM, deep color.
• Audio Embedding - Even without an HDMI source.
• Audio de-Embedding - To unbalanced analog and S/PDIF, selectable from input or ARC.
• Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
• Sleep Mode - 5V on the output, following the input, allows the display to turn off when no video is being sent.
• Preconfigured Control Options - DIP-switches control locking/modifying EDID, HDCP, embedding/de-embedding and sleep mode functionality.

APPLICATIONS

• Home theater, presentation and multimedia applications
• Rental and staging
• Education and corporate
