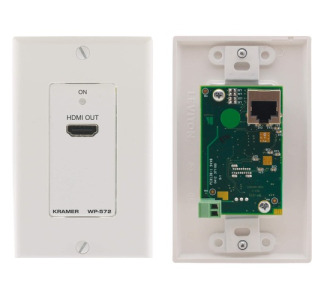

Kramer HDMI HDCP 2.2 Wall Plate Receiver over PoC Long-Reach DGKat (EU, UK, US-D)

Product Description

The WP-572 is a PoC DGKat™ twisted pair receiver for HDMI signals. The WP-571 converts an HDMI signal to a single twisted pair signal and the WP-572 converts the twisted pair signal back to an HDMI signal.

• Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
• HDTV Compatible.
• HDCP Compliant.
• DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
• HDMI Support - x.v.Color™, up to 7.1 Uncompressed Audio Channels.
• 3D Pass-Through.
• System Range - Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables. Note: Transmission range depends on the signal resolution, graphics card and display used. If using third-party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly.
• EDID PassThru - Passes EDID signals between the source and display.
• ON LED - Lights red when receiving power only, orange when either input or output and power are attached, and green when both an active input and output are attached.
• Power Connect™ System - A single connection to the transmitter powers the receiver.
• Dimensions - 3.3cm x 3.6cm x 10.4cm (1.3" x 1.42" x 4.1") W, D, H.
• Wall Plate Size - 1 gang US.
