CAMCOR ITEM NO. 384051628 | MFG. PART NO. TP-580TXR
Product Highlights

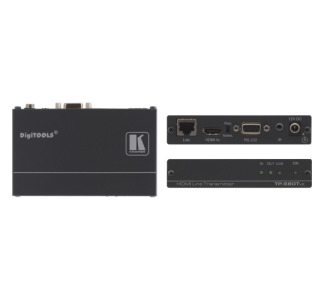

The TP?580TXR is an extended range, HDBaseT twisted pair transmitter for HDMI, bidirectional RS?232 and IR signals. The TP?580TXR inputs HDMI, RS?232, and IR signals and converts them into an HDBaseT ... More
California Residents:The TP?580TXR is an extended range, HDBaseT twisted pair transmitter for HDMI, bidirectional RS?232 and IR signals. The TP?580TXR inputs HDMI, RS?232, and IR signals and converts them into an HDBaseT twisted pair signal that it transmits to a TP?580RXR receiver.
| General Information | |
|---|---|
| Manufacturer | Kramer Electronics LTD |
| Brand Name | Kramer |
| Product Model | TP580TXR |
| Product Type | Video Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Maximum Operating Distance | 590.55 ft |
| Video | |
| Graphics Modes | Full HD |
| Maximum Video Resolution | 1920 x 1080 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| Serial Port | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of HDMI Inputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 7 |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Height | 1" |
| Width | 4.7" |
| Depth | 3" |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 1.40 lb |
| |
|
|
|
|
