CAMCOR ITEM NO. 384056593 | MFG. PART NO. TP-581T
Product Highlights

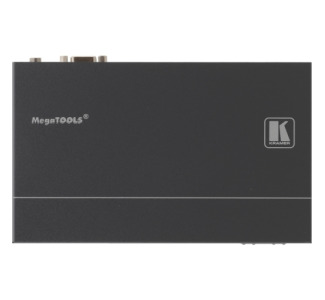

The TP-581T is a high-quality twisted pair transmitter for HDMI, Ethernet 100BaseT, bidirectional RS-232 and IR signals. The TP-581T takes the HDMI input, and converts it with the Ethernet 100BaseT, ... More
California Residents:The TP-581T is a high-quality twisted pair transmitter for HDMI, Ethernet 100BaseT, bidirectional RS-232 and IR signals. The TP-581T takes the HDMI input, and converts it with the Ethernet 100BaseT, RS-232 and IR input signals to a twisted pair signal. The TP-582R converts the twisted pair signal back to Ethernet 100BaseT, RS-232, IR and two HDMI outputs, and de-embeds the audio to S/PDIF and TOSLINK audio outputs.
| General Information | |
|---|---|
| Manufacturer | Kramer Electronics LTD |
| Brand Name | Kramer |
| Product Model | TP-581T |
| Product Type | Video Extender Transmitter |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 328.08 ft |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| Serial Port | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of HDMI Inputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 7 |
| Power Description | |
| Input Voltage | 5 V DC |
| Physical Characteristics | |
| Transmitter Height | 1" |
| Transmitter Width | 7.40" |
| Transmitter Depth | 4.50" |
| Form Factor | Rack-mountable |
| Transmitter Weight (Approximate) | 1.32 lb |
| Warranty | |
| Limited Warranty | 7 Year |
| |
|
|
|
|
