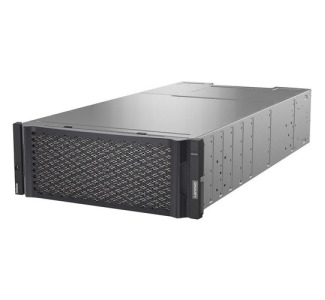

Lenovo ThinkSystem DE4000H DAS/SAN Storage System

Print Lenovo ThinkSystem DE4000H DAS/SAN Storage System pageRequest Bulk Pricing CAMCOR ITEM NO. 226960611 | MFG. PART NO. 7Y751009NA
Lenovo ThinkSystem DE4000H DAS/SAN Storage System
Lenovo ThinkSystem DE4000H DAS/SAN Storage System
Zoom
Close WindowZoom
Alternate View

MSRP: 12919.00

Your Price: $12919.00
Quantity

Usually ships in 1-3 business days
Free ShippingFREE
SHIPPING (?)

This item has Free Shipping!

Camcor, Inc. uses parcel carriers including UPS and FedEx. UPS will NOT deliver to PO Boxes (can only be shipped via US Postal Service). For residential and business orders shipped by motor freight (truck) common carrier, normal delivery is curbside or loading dock (Dock to Dock Delivery) and NOT inside the home or business.

For any special request such as "in home", "inside building", "up elevators", "up stairs", "set up", "lift gate truck", the freight company will assess additional charges. Customers are responsible for any such charges.

Product Highlights
Lenovo ThinkSystem DE4000H is a scalable, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

Lenovo ThinkSystem DE4000H is a scalable, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE4000H is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.

ThinkSystem DE4000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF), 12 large form-factor (3.5-inch LFF) drives (2U12 LFF), or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers, each with 8 GB or 32 GB memory for a system total of 16 GB or 64 GB. Host interface cards provide 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC connections.

The ThinkSystem DE4000H Storage Array scales up to 192 drives with the attachment of Lenovo ThinkSystem DE120S 2U12, DE240S 2U24 SFF, and DE600S 4U60 LFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).



Back to Top

Specifications

General Information
ManufacturerLenovo Group Limited
Brand NameLenovo
Product LineThinkSystem
Product SeriesDE
Product ModelDE4000H
Product TypeDAS/SAN Storage System
Storage
Number of Hard Drives Supported24
Number of Hard Drives Installed0
Number of Solid State Drive Supported24
Number of Solid State Drive Installed0
SSD Cache Capacity8 GB
Network & Communication
Ethernet TechnologyGigabit Ethernet
I/O Expansions
Number of Total Expansion Bays24
Number of 2.5" Bays24
Controllers
Number of Controllers2
Controller Type12Gb/s SAS
RAID SupportedYes
RAID Levels0, 1, 3, 5, 6, 10
Interfaces/Ports
Host Interface12Gb/s SAS
Number of SAS Ports (External)12
Total Number of USB Ports2
Network (RJ-45)Yes
Number of Network (RJ-45) Ports2
Fibre ChannelYes
Management & Protocols
Protocols
  • FCP
  • SSH
  • SMI-S
  • SNMP
  • SSL
  • LDAP
    • Power Description
    Number of Power Supplies Installed2
    Plug/Connector TypeC13 to IEC 320-C14
    Maximum Power Supply Wattage913 W
    Redundant Power SupplyYes
    Physical Characteristics
    Height3.3"
    Width17.7"
    Depth21.8"
    Form FactorRack-mountable
    Rack Height2U
    Miscellaneous
    Package Contents
    • ThinkSystem DE4000H DAS/SAN Storage System
    • Rack Mount Kit
    • 2 m USB Cable (USB Type A to Micro-USB)
    • Quick Installation Guide
    • Electronic Publications Flyer
    • 2 x Power Cables
    Environmentally FriendlyYes
    Environmental CertificationEU RoHS
    Warranty
    Limited Warranty3 Year
    Additional Warranty InformationThree-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD) parts delivered.
