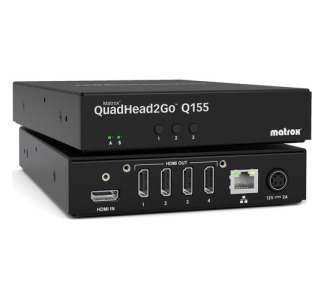

Matrox QuadHead2Go Q155 Multi-Monitor Controller Appliance

Product Description

Capable of driving four displays from one signal, the Matrox® QuadHead2Go™ Q155 multi-monitor controller appliance provides complete video wall scalability and flexibility. This system-independent appliance is designed to power any video wall configuration of any possible dimension, from any HDMI® video source-reliably delivering flawless image quality across expansive, artistic video wall displays, suited for digital signage in a wide range of industries. QuadHead2Go's on-device buttons and pre-set configurations ensure an out-of-the-box, trouble-free installation experience.

HDCP

• Capture and display HDCP protected content with QuadHead2Go multi-monitor controllers.

Proven video wall ecosystem

• Drive up to 64 1920x1080p60 displays by pairing D-Series with multiple Matrox QuadHead2Go™ multi-monitor controllers.
• Create artistic video walls by pairing D-Series with multiple QuadHead2Go multi-monitor controllers.

Complete flexibility

• Drive up to four pristine quality Full HD displays from a single video signal-of up to 4Kp60 and 8Kx8K-at full RGB 8:8:8 and YUV 4:4:4 color support.
• Expand to a video wall configuration of any size by using multiple QuadHead2Go units.
• Create a video wall from any content source, including professional graphics cards and integrated GPUs, video wall controllers, digital signage players, media players, decoders, laptops, NUCs, set-top boxes, gaming consoles, and more.
• Design modern and artistic video wall layouts with free rein-each output can have its own resolution, be independently rotated (90, 180, and 270 degrees), cropped, upscaled, downscaled, and positioned anywhere.
• Fashion countless forms of setups-arrange displays in 4x1, 1x4, 2x2, 3x1, 1x3, 2x1, or 1x2 rectangular configurations, in portrait or landscape, or other non-rectangular/artistic configurations-and combine/scale them to create large-scale, captivating video walls.

Ease of deployment

• Simplify installation with guaranteed out-of-the-box plug and play when using the default configuration of 2x2 in landscape-set up without installing software or even connecting a video source.
• Design any custom configuration/array with the intuitive Matrox PowerWall software.
• Ensure compatibility with professional-grade graphics cards and media players with native DisplayPort™ 1.2 support.
• Eliminate physical handling by controlling and updating the units remotely from anywhere on the network (LAN).
• Select and set the display layout by cycling through pre-set configurations* using an on-device button-there is no need to install software when using a pre-set configuration.
• Set up display positions, fine tune bezels, and also troubleshoot with ease, by accessing the built-in or pre-saved images directly from the appliance, together with display identification information that includes the ID number and the resolution of each output.
